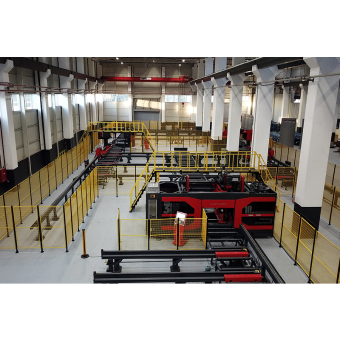

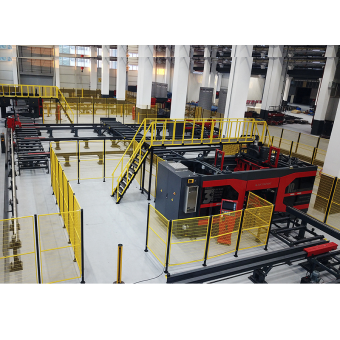

10 Axis Three Spindle CNC Drill Line

AKYAPAK, as a leader of its sector, shows its technology in steel construction drilling lines and moves it from Turkey to the World. AKYAPAK, created AKDRILL brand in this sector, manufactures CNC drilling machine series with servo motor driven in the name of ADM for steel construction masts.

AKDRILL ADM Drilling Machines provide high quality solutions in manufacturing of steel construction, bridge construction, shipyards and various fields of construction sector. ADM series have the drilling capacity of H, I, and U profiles or angles with 10-40 mm standart diameters or more.

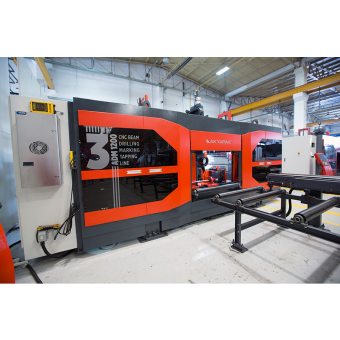

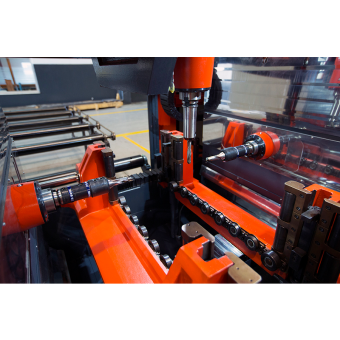

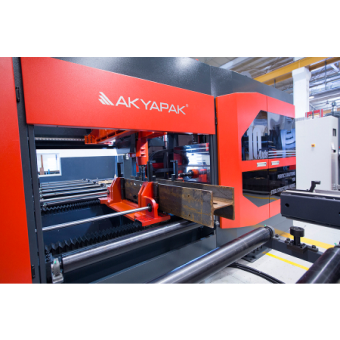

ADM Drilling Lines consist of one, two or three independent spindles. 1 ADM model which has one spindle, has the capacity of drilling the profile from three sides with right angle and by rotating +90/-90 degree. 3ADM model, which has three spindles, has the capacity of drilling the profile from three sides independently, marking and tool changing at the same time. Resetting the equipment to zero and setting to the next drilling position are performed automatically by CNC.

ADM Drilling Lines, manufacuring with first class equipments as Mitsubishi and Siemens, become prominent with quality and reliability with Akyapak’s strong after sales support, as well.

  • Control Panel: Mitsubishi
  • Drilling Unit- Vertical: 1 Vertical
  • Drilling Unit- Horizontal: 2 Horizontal
  • Drilling diameter: 10-40 mm
  • Spindle Speed-Infinitely: Infinitivel 50-3000 d/min.
  • Drive Power Per Axis: 22 kW / 140 Nm
  • Spindle torque: 280 Nm
  • Movement Transmission System: Preloaded ball screws / nut system
  • Automatic Tool Changing Unit: For each spindle one ATC with 4 tools

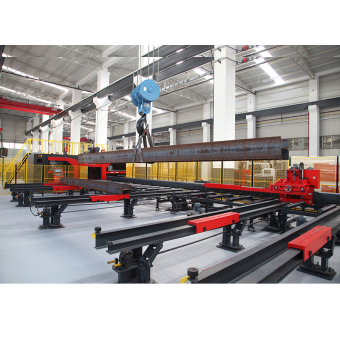

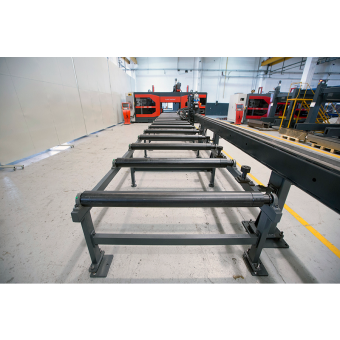

  • Infeed Table with CNC Carriage: Standard 12 m material
  • Exit Table with Motorized Rolls: Standard 12 m material
  • Central Lubrication for Linear Guides: Standard
  • Tool Cooling System: MQL
  • Weight of Linear Meter: 600 kg/m
  • Tapping Tool for all three axess (Optional): M10 – M24 (with special set)
  • Beam Width max-min with support from down:
  • Beam Height max-min: 500 / 80 mm
  • Spindle Head Tool Shaftshole: BT 40 (with cooling liguid long hole)
  • Workpiece movement: Servomotor + planetery gear box
  • Automatic Cross-Section Measuring: Standard

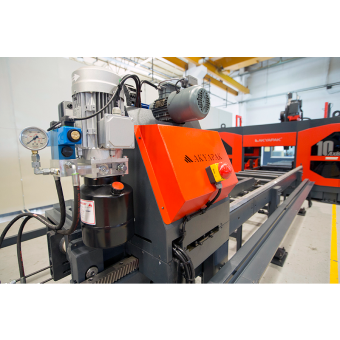

  • Miter Band Saw Machine Integration: Optional
  • Weight: 11000 kg
  • Dimensions of the Machine: 2300 x 5400 x 3050 mm

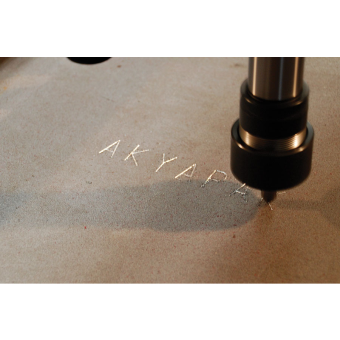

  • D.O.T. Marking: Optional
  • Scribing Tool: On one side
  • Chip Conveyor: Standard
