Angel Rolls (Heavy Series)

We Have Exceeded The Size Limit On Angle Rolls

AKYAPAK offers extensive alternatives on heavy duty profile bending machines as well. Our machines are strong and reliable with their St-52 weld construction body. Minimum flexion causes less deformation, by the help of our machines’ enlarged roll diameters. By the help of big measurements of bearings, durability and high bending momentum can be obtained.

The power of hydraulic cylinders enables to bend the larger parts without difficulty. Practical and universal rollers creates the possibility of easiness for bending various sections, and this feature gives the opportunity of being more powerful and robust.

Akyapak Profile Bending Machines are 3 rolls driven. This feature allows to have a possibility to make the high capacity bending processes real. Secondly, our 3 Rolls Driven machine minimizes the slipping of the materials during the bending process. The two bottom rolls are hydraulically driven and they can move independently with each other.

Therefore, in comparison with the machines which are top roll drive, the features of our machines enhance the ability of operators and give the opportunity to make prebending process on both edges. Side supporters can move towards three directions to reduce the deformations and to facilitate bending processes, especially with angles and spirals.

  • Welded steel construction (St-52) body
  • Rolls are driven by 3 separate hydraulic motors
  • Infinitely variable speed of rotation
  • Special steel gears
  • Shafts are made of special steel, hardened and grinded
  • Manual lubrication
  • Guide rolls are hydraulically adjustable
  • Lower rolls are hydraulically moveable up and down
  • Infinitely variable speed of rlower rools moves down-up
  • Digital display for lower rolls

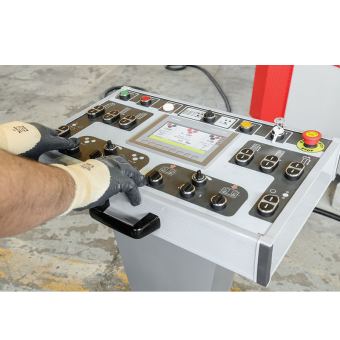

  • Seperate and moveable control panel
  • Horizontal working
  • 400 Volt/50-60 Hz
  • AKYAPAK Service assurance
  • Production quality certified by CE, ISO9001 – 2015, TSEK and TURQUM

  • Special rolls for tubes, profiles and angles
  • Special tooling system for bending H, I, U profiles
  • Digital display for hydraulic guide rolls
  • NC Playback Control System
  • CNC Graphic Control System
  • Joystickcontrol
  • Motors in variable voltage and frequency
  • Different rotation speeds

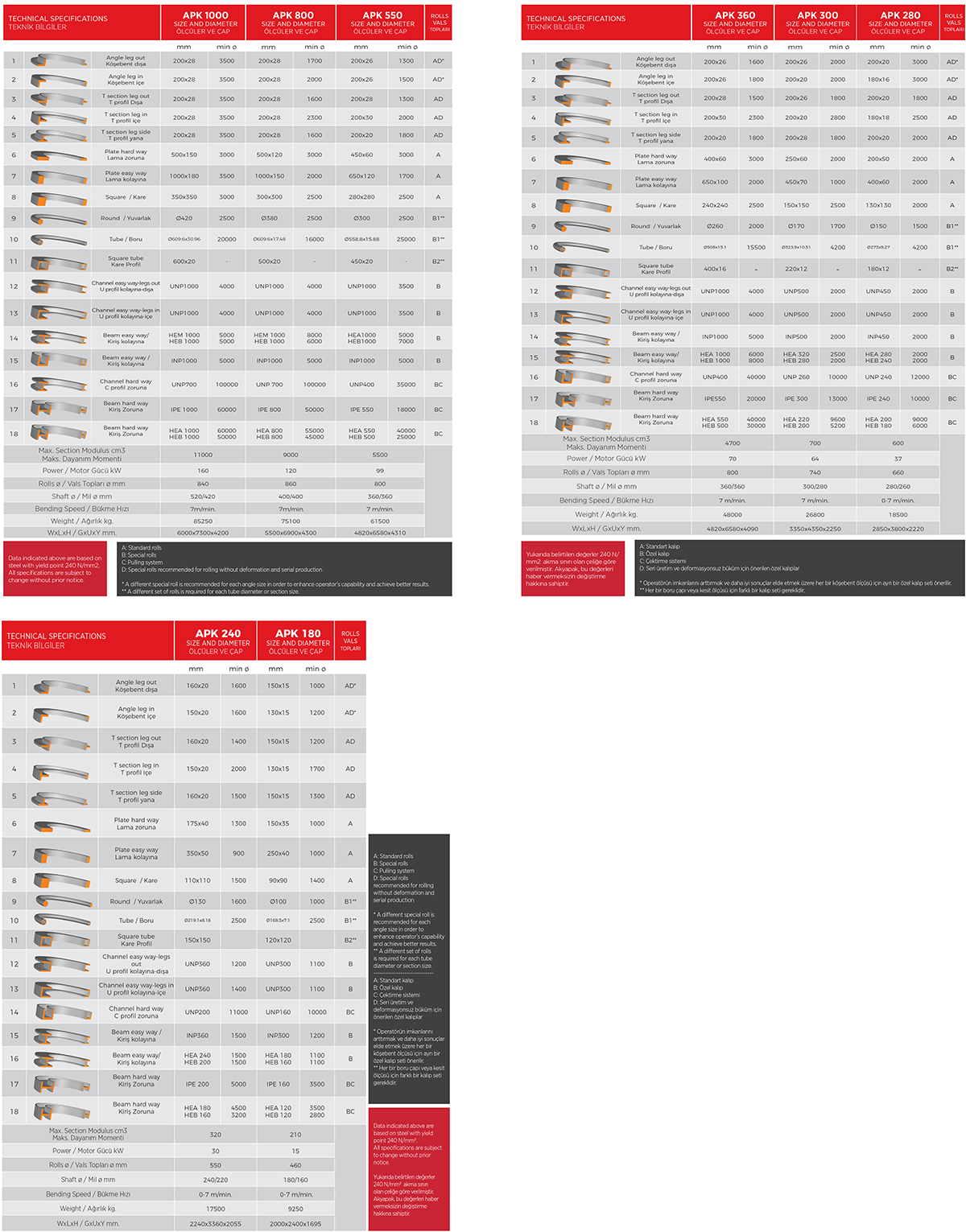

Specifications
