3 ADM ECO

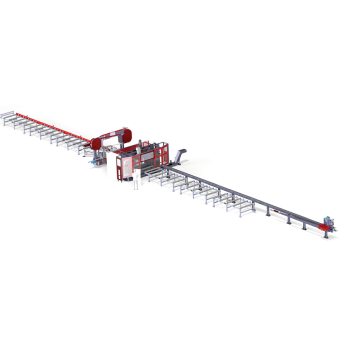

7 Axis Three Spindle CNC Drill Line

All 3ADM ECO systems are the same as 3 ADM; except for the additional z axes to x and y axes on 3 ADM. On 3 ADM ECO, the beam is driven and brought to the next drilling position after single line drilling. However, as for 3 ADM, beams can be drilled without driving them throughout the beams’ length of 500 mm.

D.O.T. (Optional)

Marking unit, rotary and axial progress movements are done by servo motor. Only blocking clamp jaw and blocking clamp jaw table’s movements are hydraulic.

It can be marking at the field 60×150 mm. Height of letter = 12 mm.

There is not any necessity move the profile during marking. Because marking head carries out the rotary and the axial progress. Marking head press power is determined with the hydraulic cutting adjustment.

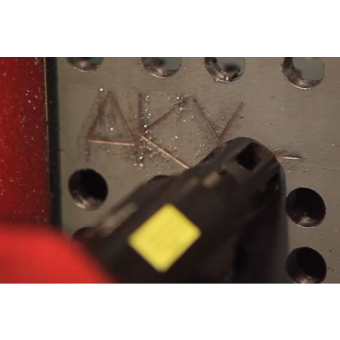

Scribing Marking Unit (Optional)

Marking unit is included in ATC as a regular set. It rotates 18,000 rpm at 6 bar air pressure and performs marking with carbide insert on the tip. It is possible to adjust the marking depth to any desired depth and the adjusted depth is guaranteed with marking unit which features +/- 7.5mm offset.

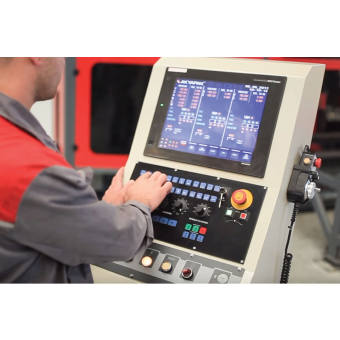

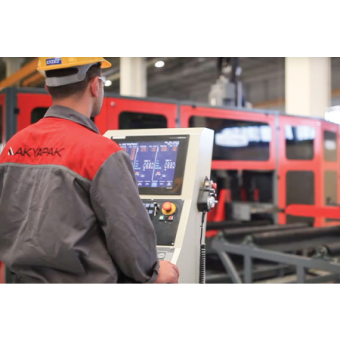

  • Control Panel: Mitsubishi

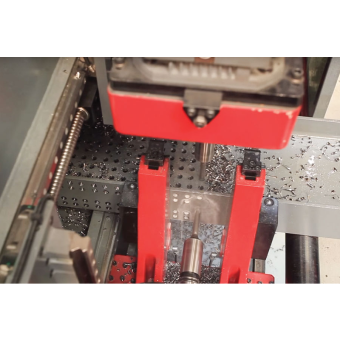

  • Drilling Unit- Vertical: 1 Vertical
  • Drilling Unit- Horizontal: 2 Horizontal
  • Drilling diameter: 10-40 mm
  • Spindle Speed-Infinitely: Infinitivel 50-3000 d/min.
  • Drive Power Per Axis: 22 kW / 140 Nm
  • Spindle torque: 280 Nm
  • Movement Transmission System: Preloaded ball screws / nut system
  • Automatic Tool Changing Unit: For each spindle one ATC with 4 tools
  • Infeed Table with CNC Carriage: Standard 12 m material
  • Exit Table with Motorized Rolls: Standard 12 m material
  • Central Lubrication for Linear Guides: Standard
  • Tool Cooling System: MQL
  • Weight of Linear Meter: 600 kg/m
  • Tapping Tool for all three axess (Optional): M10 – M24 (with special set)
  • Beam Width max-min with support from down:
  • Beam Height max-min: 500 / 80 mm
  • Spindle Head Tool Shaftshole: BT 40 (with cooling liguid long hole)
  • Workpiece movement: Servomotor + planetery gear box
  • Automatic Cross-Section Measuring: Standard
  • Miter Band Saw Machine Integration: Optional
  • Weight: 11000 kg
  • Dimensions of the Machine: 2300 x 5400 x 3050 mm
  • D.O.T. Marking: Optional
  • Scribing Tool: On one side
  • Chip Conveyor: Standard

Specifications
