ABM 76 NC

Tube Bending Machine

ABM 76 NC Tube Bending Machine bends tubes up to 76 mm diameter semi-automatically with high quality. This model comes to the forefront as a economical choice.

  • High quality hydraulic bending system
  • Controlling ability of servo axis speeds on control panel
  • Hydraulic assistant axies
  • Footpedal control
  • Capability to work with one dies
  • Dies can be supplied for any demanded size
  • Operational ability with/without mandrel
  • Capability of bending steel, stainless steel, aluminum and similar bendable tubes in simple or compex shapes
  • Spiral bending (only on certain diameters)
  • Hydraulic oil cooler
  • Auto-lubrication for mandrel
  • Practical interface program prepared in Akyapak
  • Programming ability in YBC mode
  • Tube length can be calculated in the part program
  • Motion controller system
  • 3D preview of writen program
  • Motors in variable voltage and frequency
  • 15” color touchscreen PC
  • Starting up serial production after short period training
  • Suitable for CE,ISO 9001-2015, TSEK and TURQUM certificates

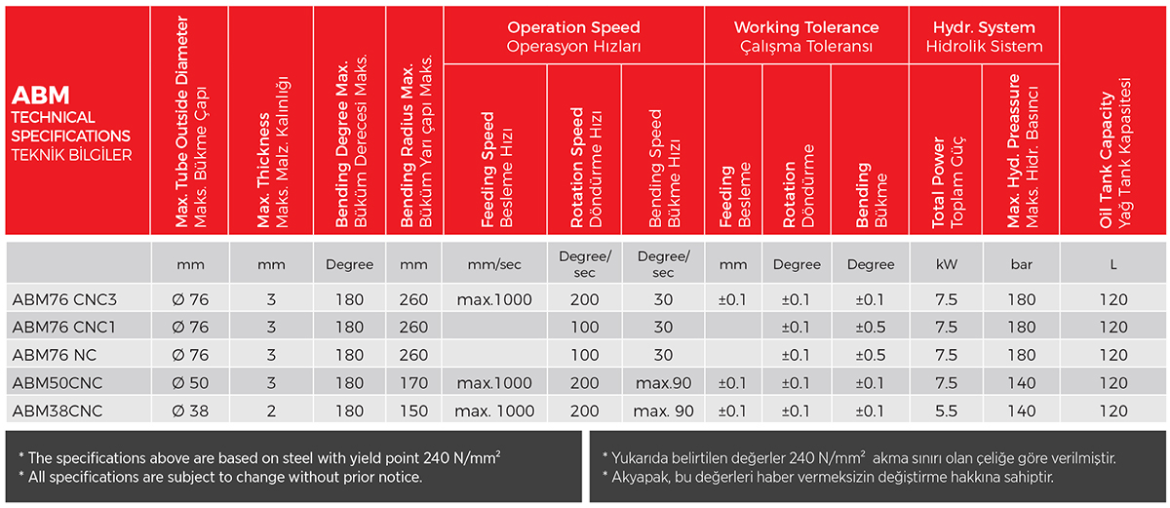

Specifications
