ABM 76 CNC 1

Tube Bending Machine

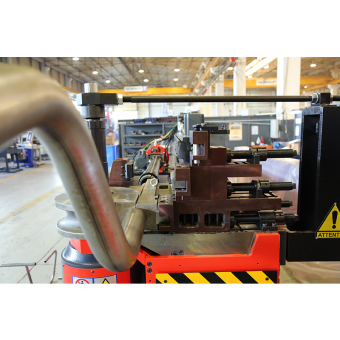

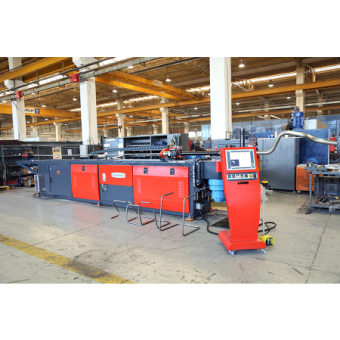

ABM 76 CNC-1 Tube Bending Machine bends tubes hydraulically up to 76 mm diameter with high quality. This powerful machine provides convenience, prevents waste of time and increases efficiency, carrying out bending process consecutively and automatically with its advanced CNC feature.

  • High quality hydraulic bending system
  • Hydraulic assistant axies
  • Moving ahead and turning axis with servo control
  • Controlling ability of servo axis speeds from control panel
  • Foot pedal control
  • Step by step and fully automatic working capability
  • Capability to work with one die
  • Dies can be supplied for any demanded size
  • Operational ability with/without mandrel
  • Capability of bending steel, stainless steel, aluminum and similar bendable tubes in simple or compex shapes
  • Auto-lubrication for mandrel
  • Hydraulic oil cooler
  • Practical interface program prepared in Akyapak
  • Program making possibility in YBC mode
  • Tube length can be calculated in the part program
  • 3D preview of written program
  • Motors in variable voltage and frequency

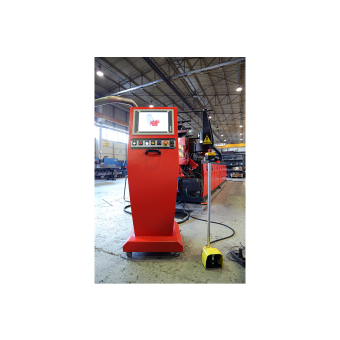

  • 15” color touchscreen PC
  • Starting up serial production after short period training
  • Certified by CE, ISO 9001-2015, TSEK ve TURQUM

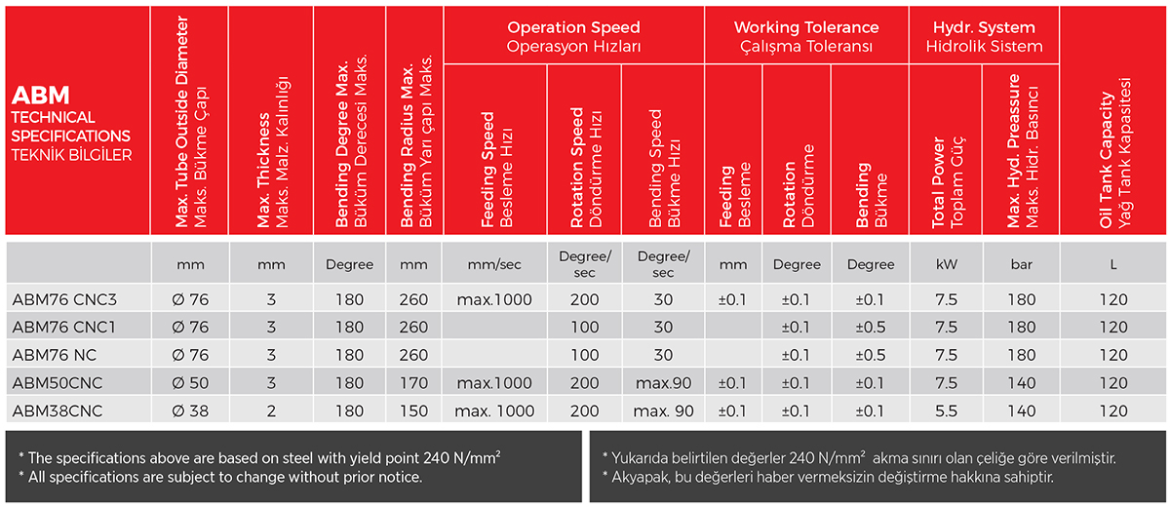

Specifications
