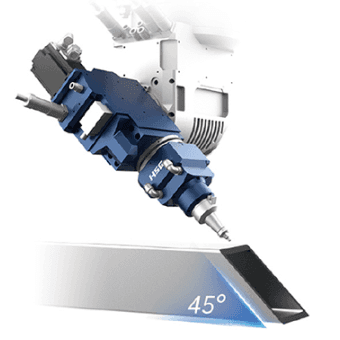

3D Five-axis Cutting Head, 45° Bevel

  • Self-developed by HSG Laser
  • Take control of laser focus thanks to its fully automated servo motor
  • Laser path reshaping technology
  • Swingable head outfitted with the function of collision prevention
  • Modular structure in favor of repair or maintenance

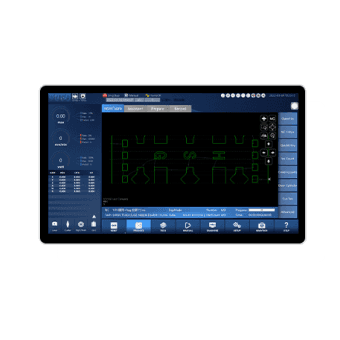

HSG-X Bus CNC System

  • 21.5-inch touch screen with concise interface
  • Real-time monitoring of core components and early warning if abnormal
  • Simple lines in favor of low failure rate
  • Auxiliary functions incl. tube error detection, welds check
  • Rich tube cutting library

* Bus refers to data transmission mode via on-site bus control system.

Image of the machine's feature
Image of the machine's feature

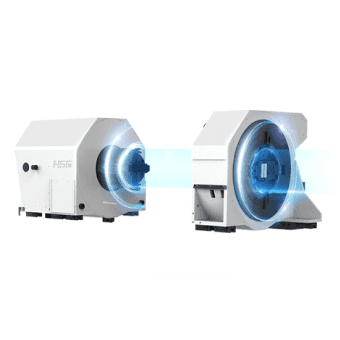

Digital Controlling Pneumatic Chucks with wireless numbers feedback

The chucks are outfitted with pressure feedback system to adjust cutting pressure based on tube size and thickness. They are also featured by auto recognition of different tubes and real-time warning with no or less manual intervention.

  • High clamping speed, accuracy and working efficiency , low threshold pressure
  • Wireless monitoring of chucks, alarm for empty chucks and high security for no collision between chucks and work-pieces
  • Pressure adjustments depending on different tube diameters and thicknesses
  • Intelligent chucks in full track without artificial adjustments and the load-bearing can achieve 200kg.
Image of the machine's feature

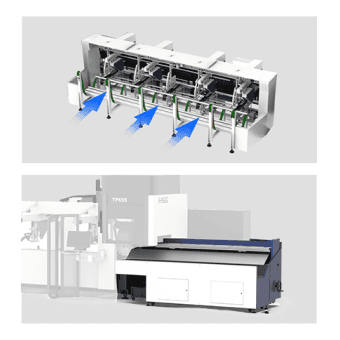

Labor-saving Configurations

Standard Tube Automatic Loading Device (Optional): Tube to be cut is conveyed to check-waiting area for length measuring and cut sequencing. Support frame is used for supporting tubes to ensure cutting stability and precision.

Unloading Device (Default): Unloading height is manually adjusted when unloading different types of tubes. Additionally follow-up unloading device is also optional.

Space Leapfrog and Flying Cutting

It helps to minimize the moving path of cutting head by omitting repeated lift and fall, thus improving the cutting speed.

*With three-axis linear interpolation, TPS Series performs well while cutting into small densely-distributed graphics.
