GL Series

GL Series

4-in-1 coil stock laser cutting machine (1500-3000W)

  • Bring decoiling, levelling (loading), cutting and unloading into syn
  • Save materials by 15%
  • Improve cutting efficiency by 50%
  • Flexible processing for spare parts of any shape

Features

gl series

One Machine with Four Functions

GL has the function of decoiling, levelling (loading), cutting and unloading as a full-functional production line, rather than single-functional machine. As thus, production will be continuous to bring more profits for users.

gl series

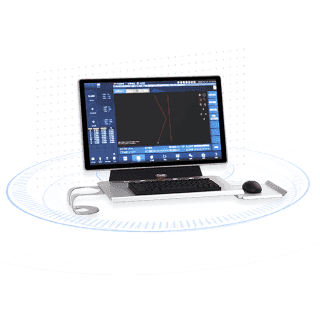

Alpha A CNC System

Self-developed by HSG LASER, Easy to operate even by green hands Match with 2000+ process data on its graphical programming interface Compatible with multiple graphic files, incl. DXF, DWG, PLT, NC code, IGS (tube cutting) Improve stock layout and material utilisation by 20% and 9.5% by its built-in nesting software, with no limit of quantity of spare parts

  • New man-machine Interaction pattern
  • Flexible/batch processing mode
  • Real-lime monitoringolcore components
  • Special cutting technology for thick sheets
  • Active reminder of machine maintenance
  • Ultra-high-speed scanning & curling with micro-connection
  • Built-in nesting software, save labor force
gl series

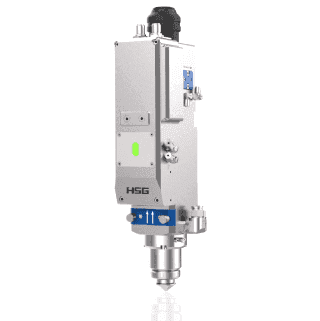

High-precision Autofocus Laser Cutting Head

Based on Japanese technology, the cutting head can adjust its focus according to laser beam mode to make sure of a mirror-like surface. It is easy to cut thin and thick sheets stably, and repair or maintain at low costs.

  • Autofocus accuracy ±0.01mm
  • Automatic cooling and obstacle avoidance
  • Anti-pollution design
  • Give early warning if abnormal

gl series

Scrollable Platform

Scrollable tool bits can be synchronous with cutting sheets to prevent any possible scratch while cutting

GL Series in Action

Technical Parameters

Feature/Model G3015L
Working Area 3000mm*1500mmW
X/Y Axis Positioning Accuracy 0.03mm/m
X/Y Axis Repositioning Accuracy 0.03mm
Max. Moving Speed 100m/min
Max. Acc. Speed 1.0G
Laser Power 1.5KW - 3KW

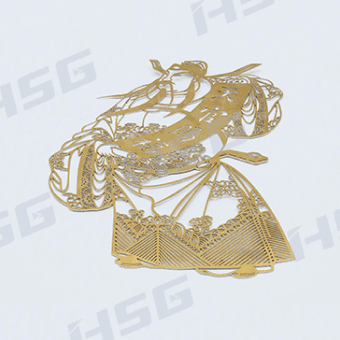

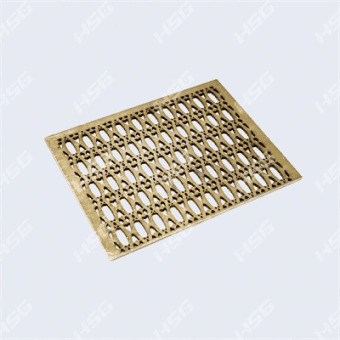

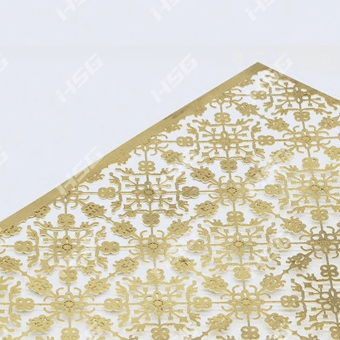

Cutting Sample

Technical Parameters

  • Feature/Model
  • Working Area
  • X/Y Axis Positioning Accuracy
  • X/Y Axis Repositioning Accuracy
  • Max. Moving Speed
  • Max. Acc. Speed
  • Laser Power
  • G3015L
  • 3000mm*1500mm
  • 0.03mm/m
  • 0.03mm
  • 100m/min
  • 1.0G
  • 1.5KW - 3KW

Cutting Sample
