GC III Series

GC III Series

Compact size single platform laser cutting machine (1500-4000W)

  • Easy to operate even by green hands
  • Active obstacle avoidance
  • Real-time monitoring of core components
  • Ultra-speed scanning and cutting with micro-connection

Features

gc ii series feature

Further Upgraded, More Faster

Max. no-load speed 140m/min, max. acceleration 1.2G, 40% faster than 2nd generation, accelerate from 0m/min to 100m/min in 3.2s.

gc iii series feature

Alpha T Bus CNC System

Alpha T, self-developed by HSG LASER, can make data transmission rapid, stable and accurate only via a network cable as a technically advanced bus system.

  • New man-machine Interaction pattern
  • Flexible/batch processing mode
  • Real-lime monitoringolcore components
  • Active reminder of machine maintenance
  • Ultra-high-speed scanning & curling with micro-connection
  • Built-in nesting software, save labor force
gc ii series feature

Imported Parts, Precision Guaranteed

  • → Equipped with dual high-powered servo motors of which max. rotating speed 3750r/min
  • → Core transmission parts like speed reducer and gears are imported from Germany.
  • → High-precision racks, guide rails and ball screws are produced by world-famous brands.

gc ii series feature

Intelligent System Alarm

Equipment can conduct self-inspection, the main interface can display abnormal alarms, reduce hidden dangers and improve equipment troubleshooting efficiency.

gc ii series feature

Anti-collision Protection

Auto monitoring of beam and cutting parts' travelling range. The system can feed abnormalities back and give orders to stop quickly, so as to protect the equipment.

gc ii series feature

Safety light curtain(Optional Features)

Halt the machine instantly while detecting any intruder to protect machine and workers.

gc ii series feature

Autofocus Laser Head, Active Collision Prevention

  • It can adjust focal point by itself according to material thickness and apply to multiple focal lengths, reducing punching duration and improving punching quality, moreover, which will perceive the surroundings and lift up to avoid obstacles intelligently
  • Flying cutting micro-connection, preventing sheet upwarp and realizing high speed and high stability while cutting

GC III Series in Action

Technical Parameters

Feature/Model G3015C III G4015C III G4020C III G6020C III G6025C III G8025C III
Working Area (L*W) 3000mm*1500mm 4000mm*1500mm 4000mm*2000mm 6000mm*2000mm 6000mm*2500mm 8000mm*2500mm
Stroke (X/ Y/ Z Axis) 1525mm/3025mm/150mm 1525mm/4025mm/150mm 2025mm/4025mm/150mm 2025mm/6025mm/150mm 2525mm/6025mm/150mm 2525mm/8025mm/150mm
X/Y Axis Positioning Accuracy ±0.03mm/m ±0.03mm/m ±0.03mm/m ±0.03mm/m ±0.03mm/m ±0.03mm/m
X/Y Axis Repositioning Accuracy ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
Max. Moving Speed 140m/min 140m/min 140m/min 140m/min 120m/min 120m/min
Max. Acc. Speed 1.2G 1.2G 1.2G 1.2G 1.2G 1.2G
Laser Power 1.5KW~4KW 1.5KW~4KW 1.5KW~4KW 1.5KW~4KW 1.5KW~6KW 1.5KW~6KW
Max. Loading Weight 700kg 1050kg 1400kg 2000kg 2500kg 3200kg
Overall Dimensions (L*W*H) 4900×2250×1700mm 5560×2250×1700mm 6015×3300×1700mm 8300×3300×1700mm 8300×3760×1700mm 10500×3600×1700mm

Technical Parameters

  • Feature/Model
  • Working Area (L*W)
  • Stroke (X/ Y/ Z Axis)
  • X/Y Axis Positioning Accuracy
  • X/Y Axis Repositioning Accuracy
  • Max. Moving Speed
  • Max. Acc. Speed
  • Laser Power
  • Max. Loading Weight
  • Overall Dimensions (L*W*H)
  • G3015C III
  • 3000mm*1500mm
  • 1525mm/3025mm/150mm
  • ±0.03mm/m
  • ±0.03mm
  • 140m/min
  • 1.2G
  • 1.5KW~4KW
  • 700kg
  • 4900×2250×1700mm
  • G4015C III
  • 4000mm*1500mm
  • 1525mm/4025mm/150mm
  • ±0.03mm/m
  • ±0.03mm
  • 140m/min
  • 1.2G
  • 1.5KW~4KW
  • 1050kg
  • 5560×2250×1700mm
  • G4020C III
  • 4000mm*2000mm
  • 2025mm/4025mm/150mm
  • ±0.03mm/m
  • ±0.03mm
  • 140m/min
  • 1.2G
  • 1.5KW~4KW
  • 1400kg
  • 6015×3300×1700mm
  • G6020C III
  • 6000mm*2000mm
  • 2025mm/6025mm/150mm
  • ±0.03mm/m
  • ±0.03mm
  • 140m/min
  • 1.2G
  • 1.5KW~4KW
  • 2000kg
  • 8300×3300×1700mm
  • G6025C III
  • 6000mm*2500mm
  • 2525mm/6025mm/150mm
  • ±0.03mm/m
  • ±0.03mm
  • 120m/min
  • 1.2G
  • 1.5KW~6KW
  • 2500kg
  • 8300×3760×1700mm
  • G8025C III
  • 8000mm*2500mm
  • 2525mm/8025mm/150mm
  • ±0.03mm/m
  • ±0.03mm
  • 120m/min
  • 1.2G
  • 1.5KW~6KW
  • 3200kg
  • 10500×3600×1700mm

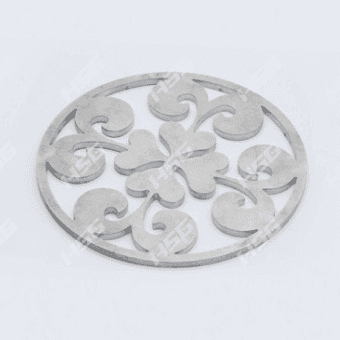

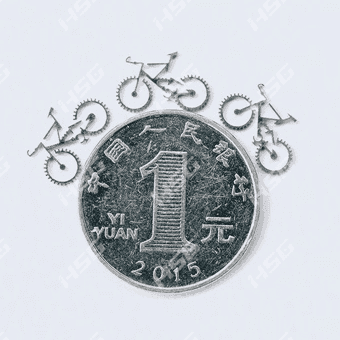

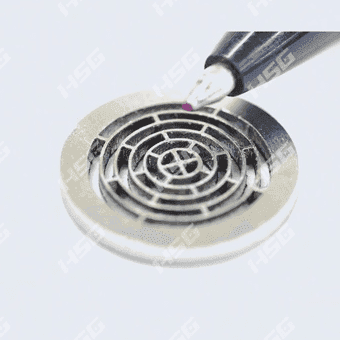

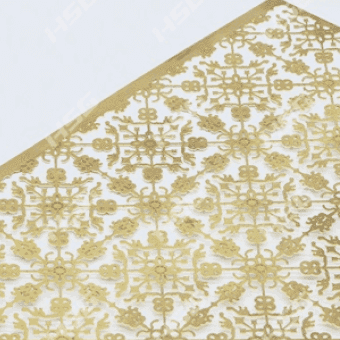

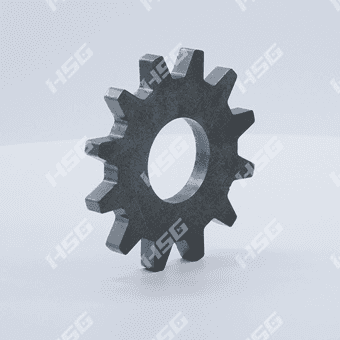

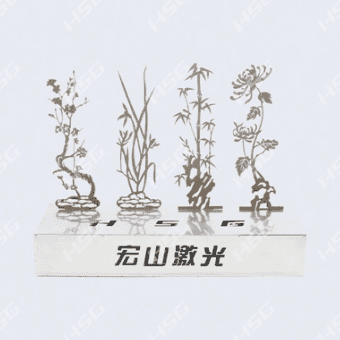

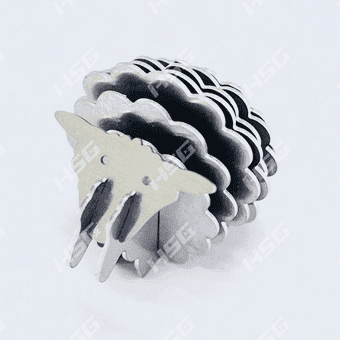

Cutting Sample

GC III Series Cutting sample GC III Series Cutting sample GC III Series Cutting sample GC III Series Cutting sample GC III Series Cutting sample GC III Series Cutting sample GC III Series Cutting sample
