GXE Series

GXE Series

Double exchange platforms Sheet & Tube Laser Cutting machine (1500- 6000W)

  • One machine Two functions
  • Alpha A CNC System, self-developed by HSG
  • Transported by 40HQ+ 40GP Standard Container
  • A hot-sale Model Overseas

Features

gxe series

One Machine with Two Functions

The GXE series can cut both sheet and tube metals, replacing a professional sheet laser cutting machine and tube laser cutting machine in total. For users, GXE will expand their scope of cutting materials and enhance their market competitiveness.

gxe series

Alpha A CNC System

Developed by HSG LASER, the GB series comprises Alpha A CNC System that is easy to operate even by green hands. Match with 2000+ process data on its graphical programming interface. It is compatible with multiple graphic files, incl. DXF, DWG, PLT, NC code, IGS (tube cutting). The GB series improves stock layout and material utilization by 20% and 9.5% by its built-in nesting software, with no limit of quantity of spare parts.

  • → New man-machine interaction pattern
  • → Flexible/batch processing mode
  • → Special cutting technology for thick sheets
  • → Ultra-high-speed scanning and cutting with micro-connection
  • → Real-time monitoring of core components
  • → Active reminder of machine maintenance
  • → Built-in nesting software, save labor force
gxe series

Full-automatic Double Pneumatic checks

The chucks are 3 times faster than electric chucks due to one-key clamping and auto centering. With large and constant clamping force, heavy tubes will be clamping stably. Due to dual-driven pattern, the front and rear chucks can rotate synchronously.

Specifications:

  • Φ20-210mm 20*20-150*150mm
  • Profiles like channel and angle steel

gxe series

High-precision Autofocus Laser Cutting Head

Built using Japanese technology, the cutting head can adjust its focus according to laser beam mode to make sure of a mirror-like surface. It is easy to cut thin and thick sheets stably, and repair or maintain at low costs.

  • Autofocus accuracy ±0.01mm by servo autofocus system
  • Automatic cooling and obstacle avoidance
  • Laser transmittance 99.95%, loss 0.05%
  • Three built-in protective lens
  • Anti-pollution design
  • Give early warning if abnormal

gxe series

Carbon Steel Welded Machine Bed

  • Due to 500 Mpa tensile strength and welding stress elimination by low annealing and vibration ageing, the machine bed will keep high precision and stability for over 20 years. Covered with military-level anti-burning manganese steel plate, it can also help to prevent thermal deformation.
  • The Latest Generation of Extruded Aviation Aluminum Beam
gxe series

Double Exchange Platforms

The intelligent exchange platforms self-developed and applied for innovative technical patents by HSG Laser will start exchange instantly after cutting, only 15s required at most, to save loading & unloading duration, labour costs and improve cutting efficiency.

gxe series

The Latest Generation of Extruded Aviation Aluminum Beam

  • The light-weight 6 series aviation aluminium alloy adopted offers good dynamic performance.
  • The beam is designed as a honeycomb compressive structure in accordance with aero spacecraft design standards.
  • The beam takes its shape by extrusion moulding technology, without air or sand hole, but high strength.

GXE Series in Action

Technical Parameters

Feature/Model G3015XE-22EQ
Working Area (L*W) 3000mmx1500mm
X/Y Axis Positioning Accuracy ±0.03mm/m
X/Y Axis Repositioning Accuracy ±0.03mm
Max. Moving Speed 60m/min
Max. Acc. Speed) 0.5G
Laser Power 1500KW~6000W
Max. Loading Weight 800kg
Overall Dimensions (L*W*H) 9200*3500*2200

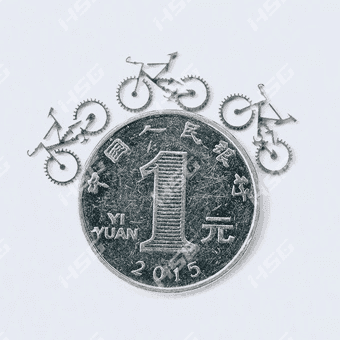

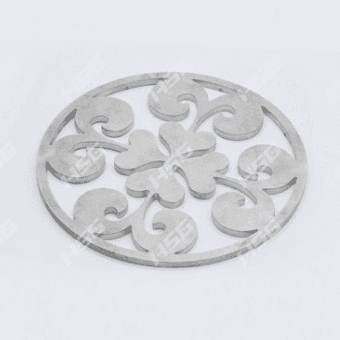

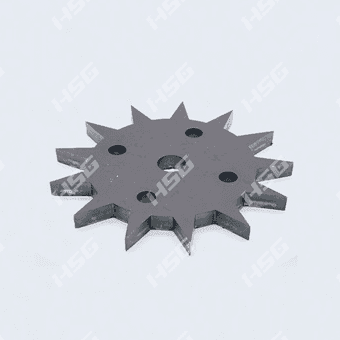

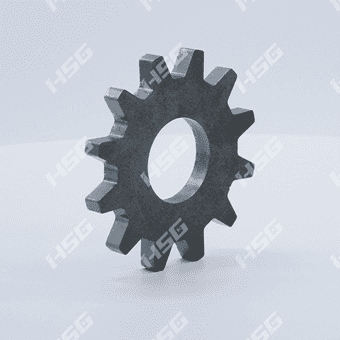

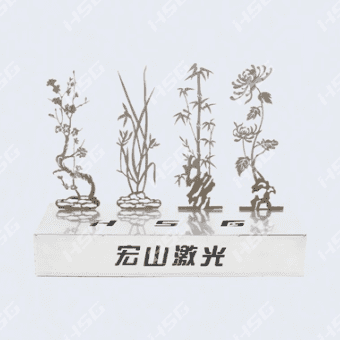

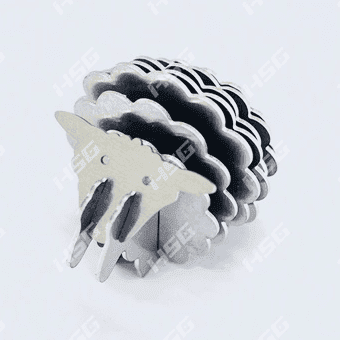

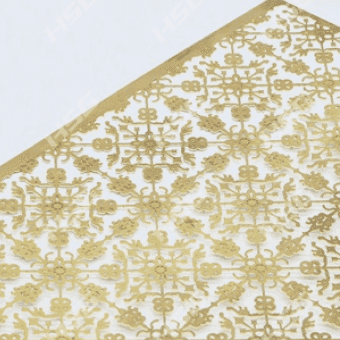

Cutting Sample

GXE Series Series Cutting Sample GXE Series Series Cutting Sample GXE Series Series Cutting Sample GXE Series Series Cutting Sample GXE Series Series Cutting Sample GXE Series Series Cutting Sample GXE Series Series Cutting Sample GXE Series Series Cutting Sample
