GHE-35HQ Pro Series

GHE-35HQ Pro Series

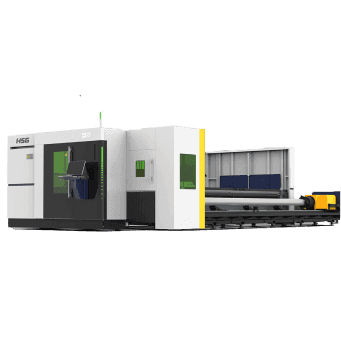

Ultra-high powered Sheet & Tube Laser Cutting Machine (15000-20000W)

  • Patented Cornerstone bed
  • Innovative modular workbench
  • Low-pressure cutting technology
  • New-man machine interaction pattern

Features

ghe 35hq pro series

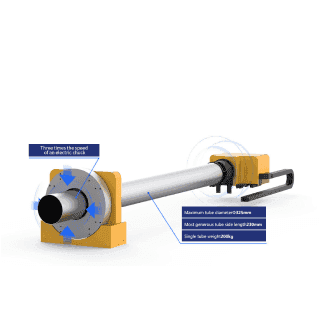

325mm Large Diameter Heavy Duty Pneumatic Chuck

Wireless control, one-button clamping, automatic centering, 3 times faster than electric chuck, minimizing the non-productive time; Pneumatic claws with large and constant clamping force, heavy tube is clamped tightly without slip, cutting accuracy guaranteed; Channel steel, angle steel and other profiles available.

ghe 35hq pro series

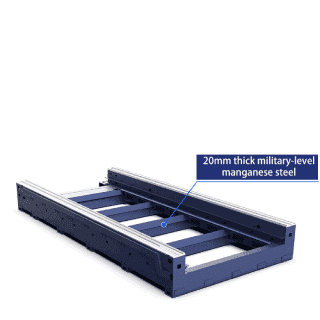

Self-developed Patented (No. ZL201920120262.X) Cornerstone Machine Bed

Firm and steady, no vibration while high-speed working; Military industry-specific high manganese steel fireproof plate, in favor of bed protection, shock absorption and high temperature resistance; HSG’s unique heat accumulation and dissipation technology (bed divided into two parts by 40mm thick steel plate) can diminish heating area and speed up heat dissipation.

ghe 35hq pro series

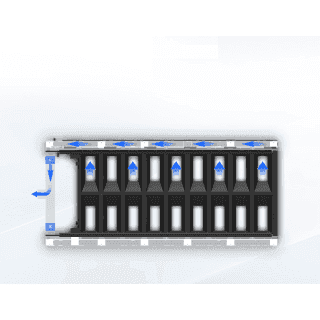

Patented Ventilation System

Divided into two zones, generally controlled by butterfly valve, hence, centralized suction and large-caliber ventilation ducts are good for smoke exhaust; Butterfly valve damper (patent No. ZL201921867470.2) brings good sealing, kills open-close noise and creates environmental-friendly effect.

ghe 35hq pro series

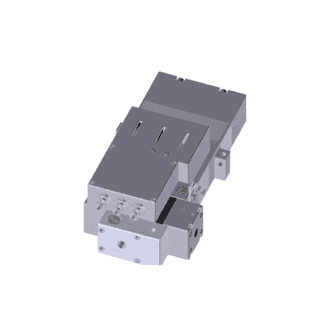

German Imported Gas Servo Proportional Valve

Digital input, automatic adjustment, more accurate control of gas flow and pressure; Improve efficiency and save costs by making full use of gas.

ghe 35hq pro series

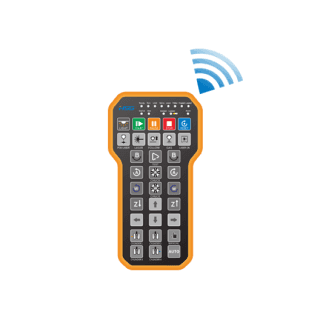

Intelligent Remote Control

The key setting is simple and clear, one-button wireless control: calibration, blowing, simulation, cutting, pause, etc; Magnetic design, put and take at any time, easy operation.

gb series

Alpha A CNC System

  • New man-machine Interaction pattern
  • Active obstacle avoidance
  • Flexible/batch processing mode
  • Real-lime monitoring of core components
  • Special cutting technology for thick sheets
  • Active reminder of machine maintenance
  • Ultra-high-speed scanning & curling with micro-connection
  • Built-in nesting software, save labor force

GHE-35HQ Pro Series in Action

Technical Parameters

Feature/Model G4020HE-35HQ Pro G6020HE-35HQ Pro G6020HE-35HQ Pro G8025HE-35HQ Pro
Working Area (L*W) 4000mm*2000mm 6000mm*2000mm 6500mm*2500mm 8000mm*2500mm
Stroke (X/ Y/ Z Axis) 2025mm/4065mm/270mm 2025mm/6100mm/270mm 2525mm/6100mm/270mm 2525mm/8100mm/270mm
X/Y Axis Positioning Accuracy ±0.03mm/m ±0.03mm/m ±0.03mm/m ±0.03mm/m
X/Y Axis Repositioning Accuracy ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Max. Moving Speed 120m/min 120m/min 120m/min 120m/min
Max. Acc. Speed 1.2G 1.2G 1.2G 1.2G
Round Tube Processing Dim. Φ20 - Φ325mm Φ20 - Φ325mm Φ20 - Φ325mm Φ20 - Φ325mm
Square Tube Processing Dim. 20*20mm -230*230mm 20*20mm -230*230mm 20*20mm -230*230mm 20*20mm - 230*230mm
Rectangle Tube Processing Dim. Diagonal≤325 Diagonal≤325 Diagonal≤325 Diagonal≤325
Laser Power 15KW~20KW 15KW~20KW 15KW~20KW 15KW~20KW
Max. Loading of Sheet 2800kg 4200kg 5300kg 7020kg
Max. Loading of Tube 200kg 200kg 200kg 200kg
Overall Dimensions (L*W*H) 12000×4800×2500mm 16000×4800×2500mm 16000×5380×2500mm 20300×5380×2500mm

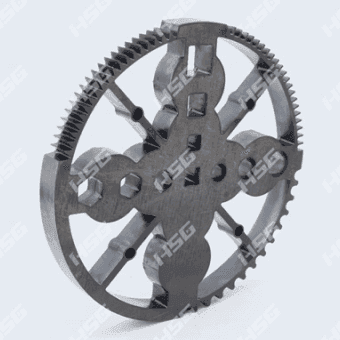

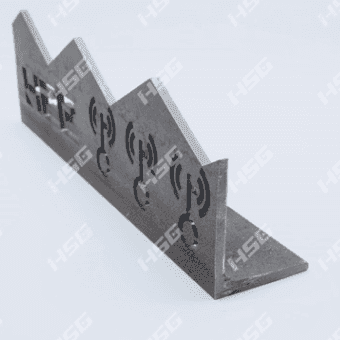

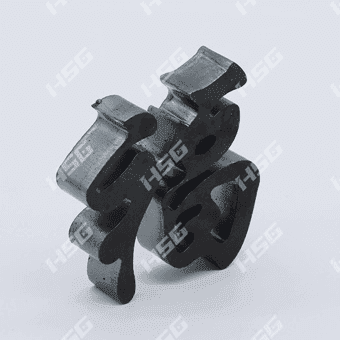

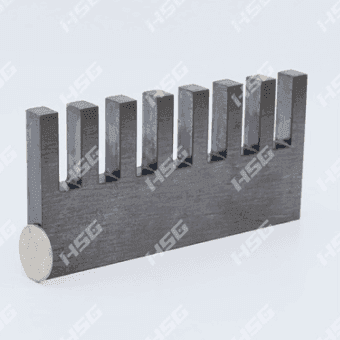

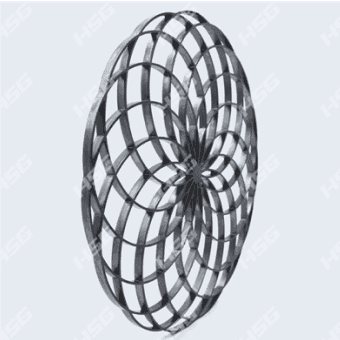

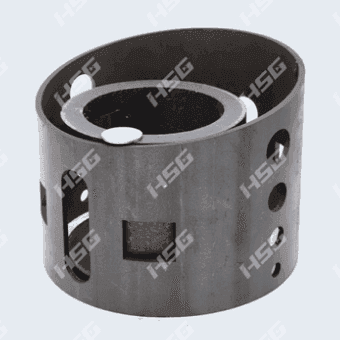

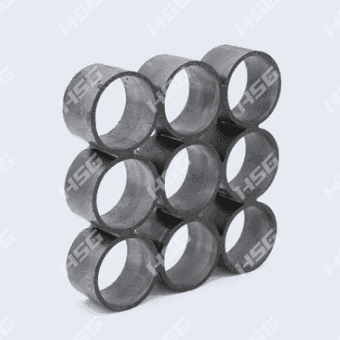

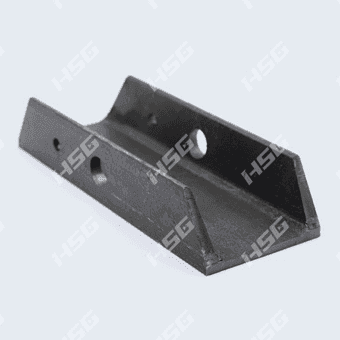

Cutting Sample
