iMark Fiber Laser Marking Machine

Flexible laser marker with superb quality output

  • Permanent marking
  • Flexible, dynamic data can be marked
  • Cost-efficient production
  • High-speed marking, Laser marking in seconds for more throughput
  • Perfect marking results - fine tool
  • Flexible and convenient operation system, Integration into production lines
  • Non-contact and process-safe
  • Good stability and maintenance-free
  • Excellent beam quality, high stability output

Features

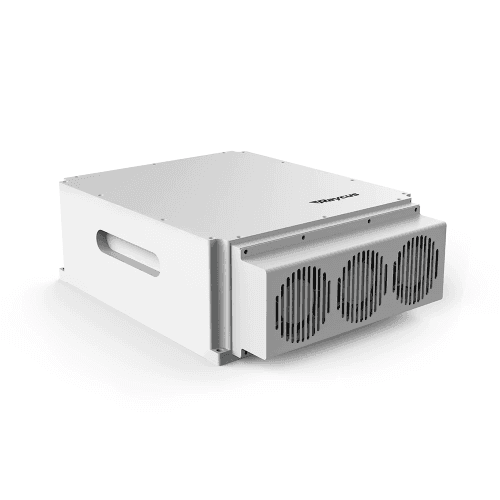

Fiber Laser Source

Machine is standard with Max. Raycus, JPT, or IPG fiber laser source according to the customer's requirements. It is a perfect laser beam with long life.

  • Highly stable laser output
  • High single-pulse energy
  • High marking efficiency
  • Short pulse setup time
  • High-reliability
  • Maintenance-free operation

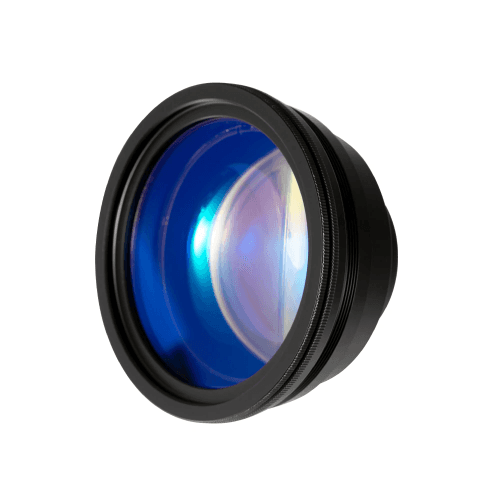

F-Theta Lens

Featuring an air-spaced design and anti-reflective coating, our compact Fθ field lens ensures an excellent throughput and durability with less than 1% distortion.

  • The finest optical materials in the world
  • Special housing designs to optimize performance
  • Designs featuring 1 to 5 optical elements
  • Wavelength 1064nm (Fiber)
  • Telecentric scan lens offers smaller spot size.
  • Low loss AR coatings
  • Precision optical elements

Control System with Software

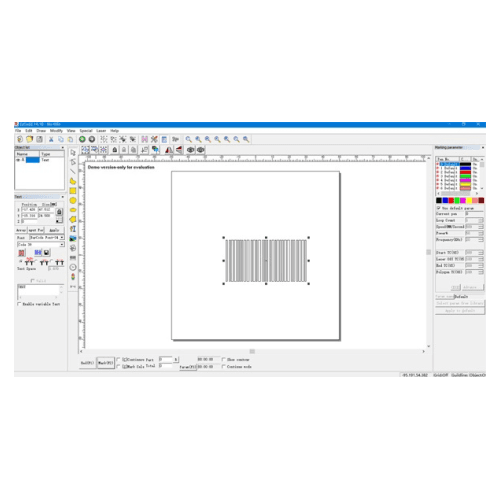

Our marking machine comes with a Beijing JCZ board card and EzCad2 software compatible with Windows 7, 8, and 10. It is professional engraving offering stable performance with high reliability. It’s intuitive and easy to use. It can also use images from AutoCAD, CorelDraw, Adobe Illustrator, Photoshop, etc.

fiber-laser

Galvanometric System

The laser’s high-speed Galvo-Tech digital galvanometric system reduces delays and improves your engraving speed.

  • Cost-effective high-speed galvo scanner
  • High-Speed Scanning, Precise Positioning and Stable Performance
  • Zero Drift, Small Size and Strong Anti-Interference

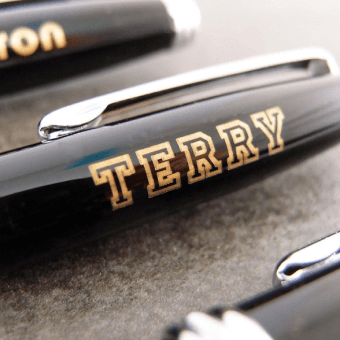

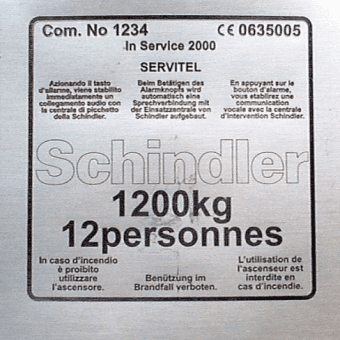

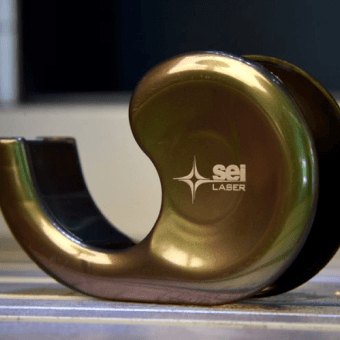

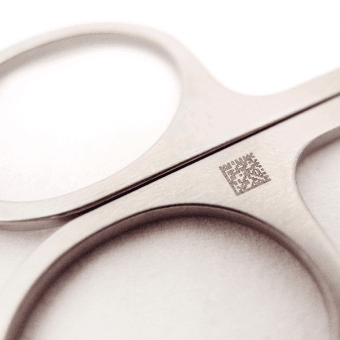

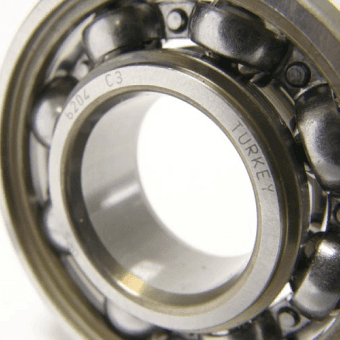

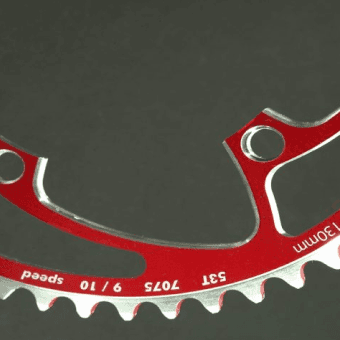

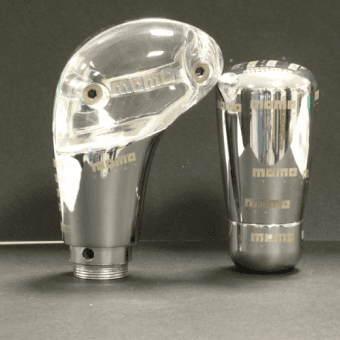

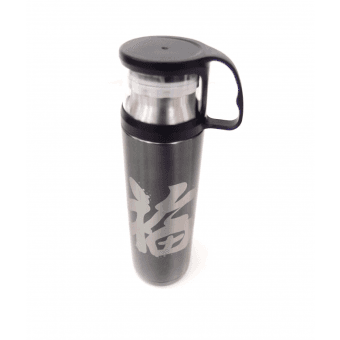

iMark Fiber Laser Marking Machine in Action

Technical Parameters

Model iMark-20 iMark-30 iMark-50
Output Power 20 W 30 W 60 W
Wavelength 1064 nm
Power Adjustment 0 to 100 %
Cooling Air Cooled
Min. Line Width Min. 0.03 mm (Depend on Material)
Max. Speed Max. 10000 mm/s (Max. Linear Speed)
Marking Depth 0.01~0.3mm (Depends on Material)
Min Character Height 0.5 mm
Marking Range(mm/s) 110 mm X 110 mm (Standard) Optional: 200 x 200 mm, 300 X 300 mm
Supporting Format Support PLT, DXF, BMP File etc., Using SHX TTF Character Storage Directly
Single Pulse Energy (mj) 1.0@20KHz 1.0@30KHz 1.0@50KHz
Repetition Frequency Range 20-60 KHz 30-60 KHz 50-100 KHz
Output Power Stability <3%
Beam Quality(M2) <1.5 <1.8
Pulse Width(ns) 90-130 KHz 90-150 KHz
Max Power Consumptions 400 Watt 450 Watt 650 Watt
Specifications are liable to change without prior notice. Computer system will not be provided with the machine. Total machine power consumption is 1KW.

Applications

  • Marking on all non-metal
  • Marking on some nonmetals like PVC, Paper ABS, etc…
  • Bar code / Data Matrix Marking

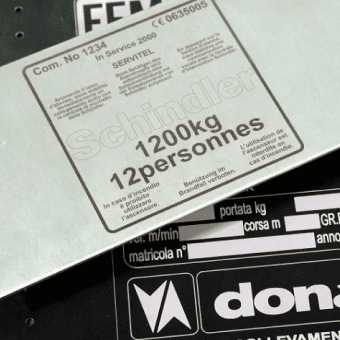

  • Serial Number Marking
  • Bitmap (Graphics) marking

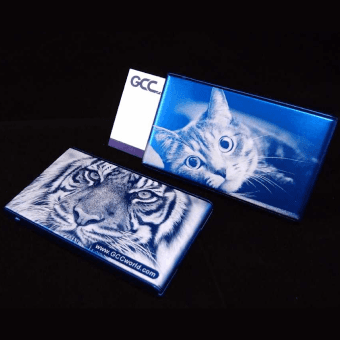

  • High quality gray scale marking
  • Jewellery Metal Cutting

Options

fiber-laser options fiber-laser options fiber-laser options fiber-laser options

Attachments

co2-laser attachment co2-laser attachment co2-laser attachment co2-laser attachment
