AHS-10500

Tank Rolling Machines

Great Solutions For Great Challenges

Akyapak’s 4-roll AHS model offers reliable and excellent solutions for precise and challenging rolling applications. It is the most reasonable choice to bend the materials with a plate thickness of 2 mm to 200 mm and with a plate width of 500 mm to 12000 mm.

Prescide, Productive and Reliable

As well as being reliable, AHS increases productivity with its high speed rolling ability and it overcomes the most challenging bends thanks to its ease of use. Since the plate is pinched during rolling, skidding and slipping of materials are prevented. Thus, more reliable rolling operations are performed and more precise results are achieved. In AHS 4-Roll Plate Rolling Machines, one of the side rolls can be used as a squaring roll, thus the plate can be easily and precisely aligned along the roll across the input direction.

Less Flat Ends At a Single Pass

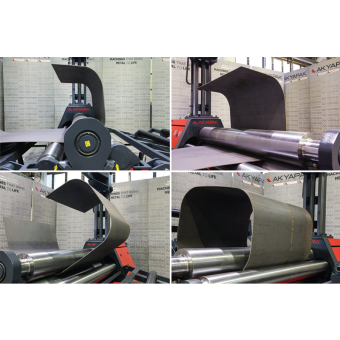

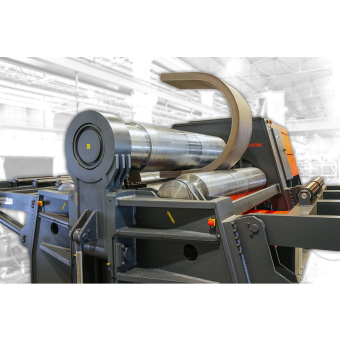

It is possible to achieve a full cylinder at a single pass with AHS 4-Roll Machines, because the material can be pinched with the lower-roll during pre-bending and bending. AHS model allows for precise pinching of the plate between upper and lower rolls, thus the length of flat ends are minimized. Akyapak 4-Roll CNC Rolling Machines having superior features decrease the dependency on an operator and offer more reliable and more productive solutions.

  • Cone rolling device

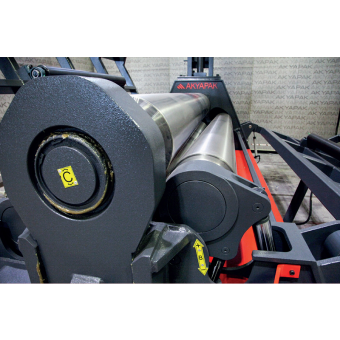

  • Induction hardened rolls
  • Digital display for side rolls
  • Fully welded steel (St-52) frame

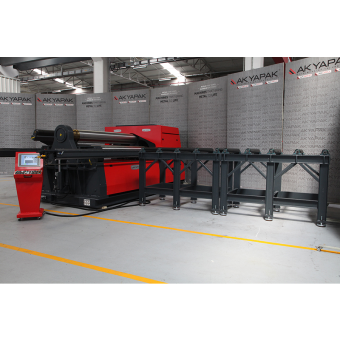

  • Separate moveable control panel
  • Two rolling speeds
  • Electro-hydraulic calibration
  • All rolls are mounted in roller spherical roller bearings
  • Safety equipment around the machine
  • Central rolls are driven by hydraulic motors and planetary gearboxes
  • CE, ISO9001 – 2015, TSEK ve TURQUM certifications

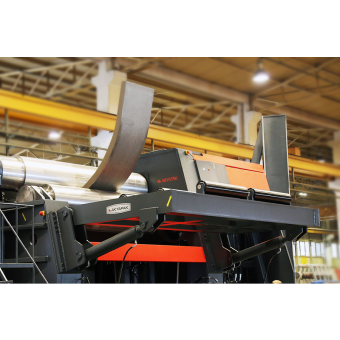

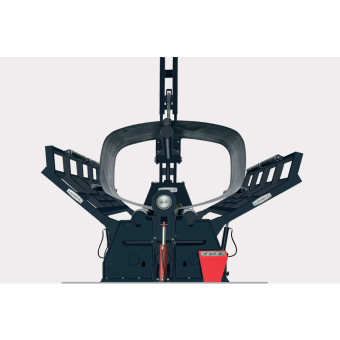

  • Central and side supports
  • Variable speed of rotation

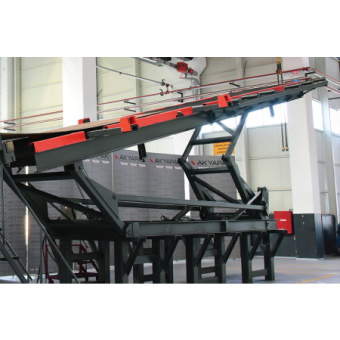

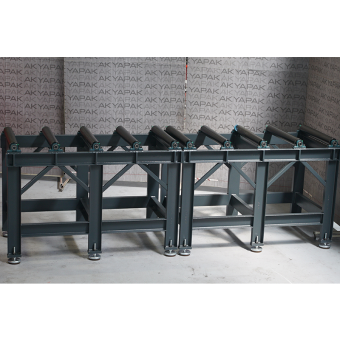

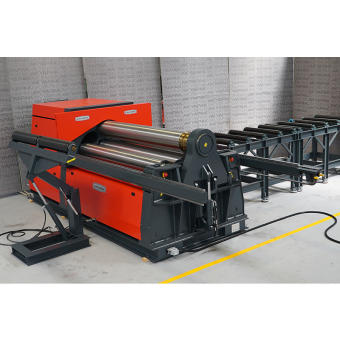

  • Material feeding table with various features

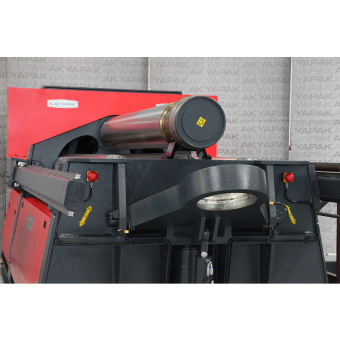

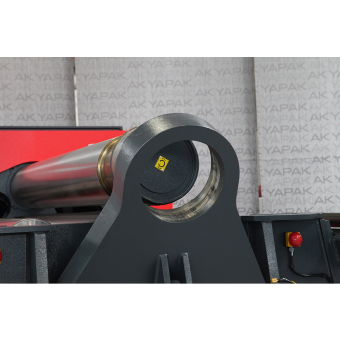

  • Interchangeable top roll
  • Oil cooling system
  • Driven side rolls
  • Automatic material ejection equipment
  • Automatic loading and unloading system
  • Deflection compensating system
  • Motors in variable voltage and frequency
  • CNC
  • NC

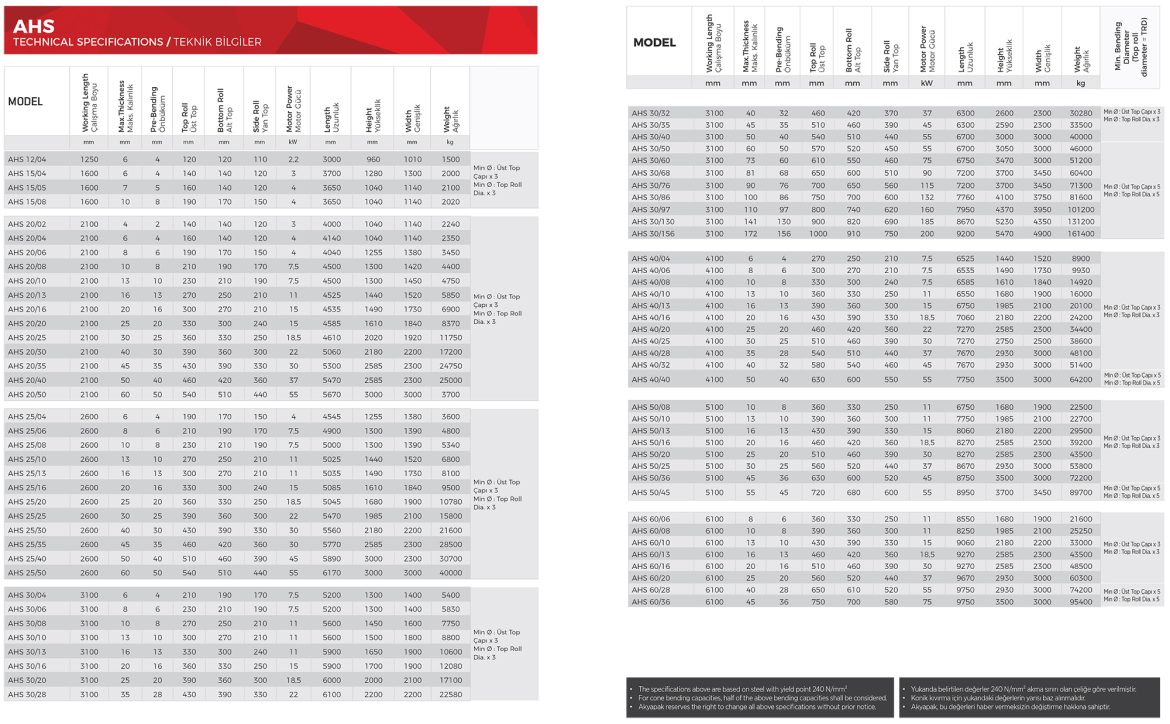

Specifications
