Meteor 1200

Single Spindle Drilling Line

METEOR-1200 is developed to drill any kind of profile by rotating the beam for Small-Mid Size Fabricators. The tight tolerance between the holes is not a matter anymore since day by day steel fabricators need more accurate manufacturing and assembling in shorter time. The labor is costly so METEOR-1200 is ready to reduce your labor either for drilling or for on-site assembly.

Ready to drill beams, angles, flat sheets and any suitable geometry. You can also make milling for slots, pockets and any geometry by having state of arts control system.

  • Fast return on investment
  • Fast return on investment
  • Fully CNC control
  • 15 kW spindle motor power
  • 6 Station tool changer
  • LASER automatic tool measurement & material zero referencing
  • High positioning tolerance and repeatability
  • Very robust design
  • Worldwide spare parts availability
  • User friendly interface
  • Fast, accurate and maintenance free
  • Available in lenghts of 6, 10, 14, 18, 22, 26 meters

  • Control Panel: SIEMENS
  • Drilling Unit: 1
  • Rill Chuck Cone / Spindle Head Tool Shafts hole: BT40, suitable for ATC system
  • Working length: 12000 mm (2000x6000x8000x18000 OPSİYON)
  • Profile height: 50 mm - 1200 mm
  • Profile width: 50 mm - 1200 mm
  • Support table height: 1200 mm
  • Length: 17469 mm
  • Height: 3299 mm
  • Width: 3721 mm
  • Weight: 12000 kg
  • Maximum tool length: 300 mm
  • Tapping: M12 – M20
  • Drilling capacity: 10 – 32 mm tool with replaceable carbide head / 40 mm with U-tool
  • RPM: 3000 rpm
  • Spindle Power: 11 kW
  • Total Power: 45 kW
  • Tools ATC: 6 AD.

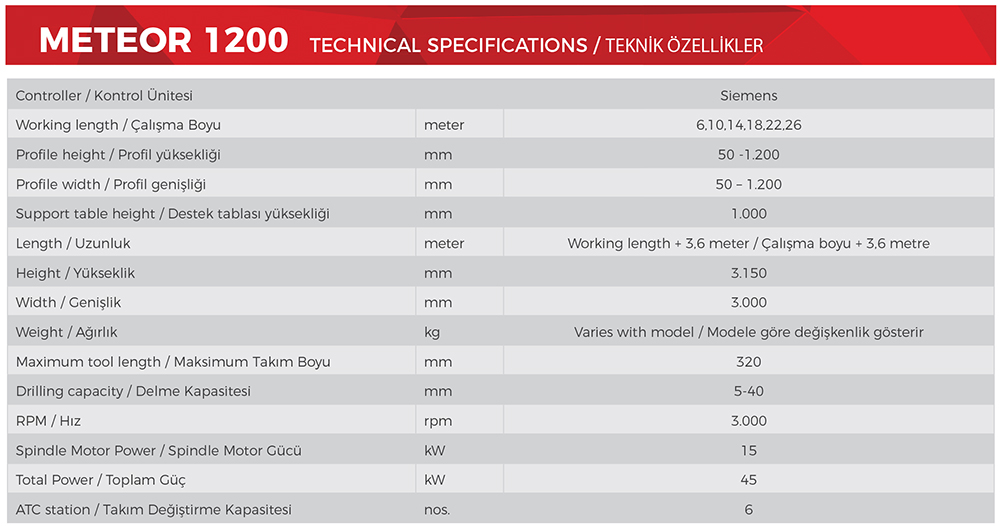

Specifications
