APD

Heavy-Duty Plate Drilling Machines

It was manufactured according to the work piece of the customer and all future productions will be realized according to the customer requirements.

  • 3 Axes CNC
  • High processing performance
  • Spindle high positioning sensitivity
  • Manuel part attaching
  • Drilling, screw cutting and surface milling ability on the plate with a single spindle
  • A drill chuck fit for fast manual replacement
  • Special milling machine bit enabling marking the plate
  • Efficient liquid & air drill cooler unit
  • Max. processing size (mm): 3000×4000 (it can be change up to the demands)
  • Max. drilling diameter (mm): Ø 75

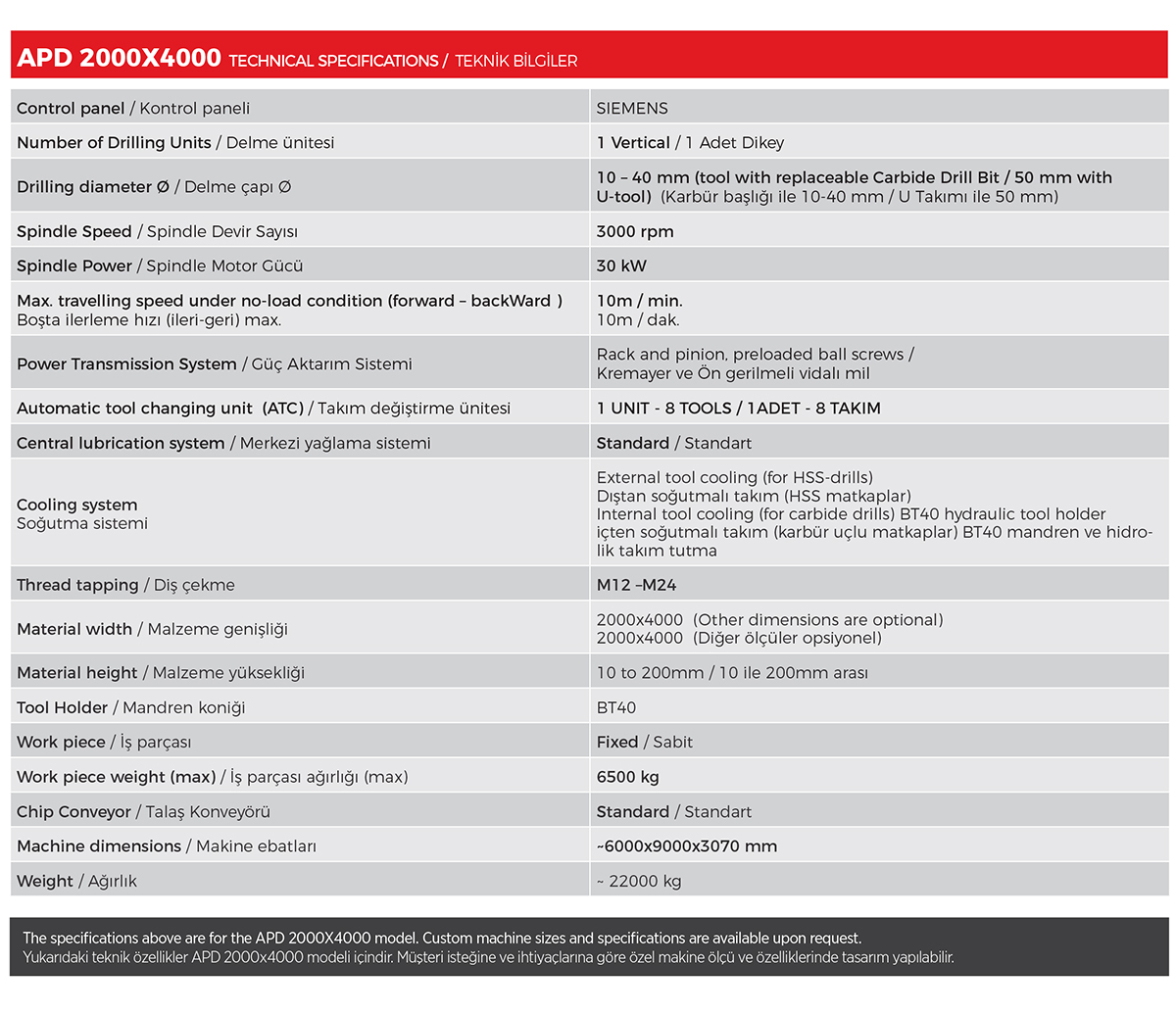

Specifications
