AKD

Angle Punching, Shearing - Marking Line

AKD Angle Punching, Shearing & Marking Line will save your time…

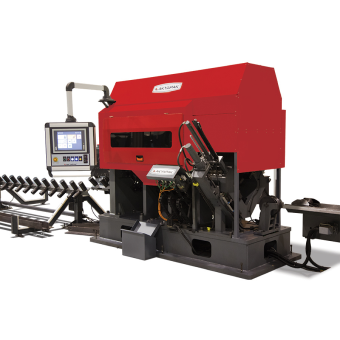

Akyapak, AKD Angle Punching, Shearing & Marking Line, provides a new production solution for power plant or electrical poles, towers, oil refineries and all steel construction works that require quick but high quality operations without wastage.

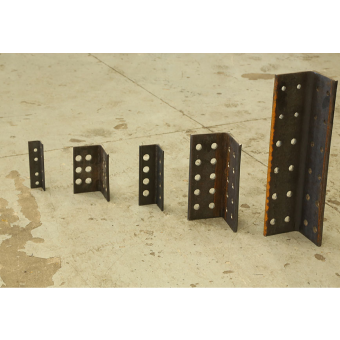

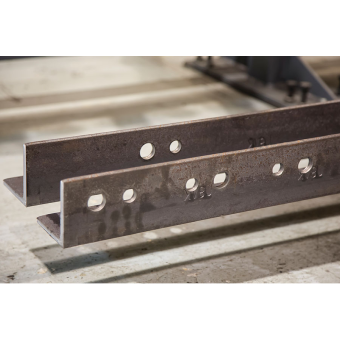

Designed to punch 40×40 – 160×160 L angle bars up to ø32 automatically and to cut them in programmed lengths with speed and high quality. 12 meter input and 12 meter output stands, pushing jaw enables to increase to efficiency and your works will be completed much more quickly. With AKD, having loading unit with capacity of 5 profiles, you will save your time.

  • Punching Capacity: Angle Steel min:40x40x5 max.160x160x17 mm

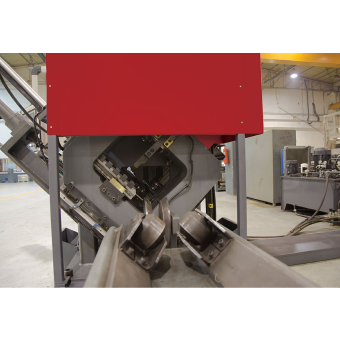

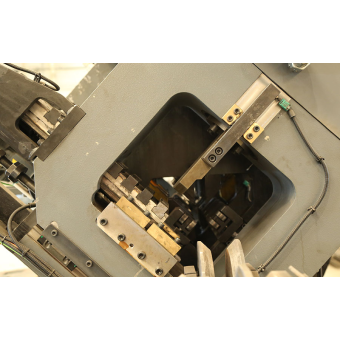

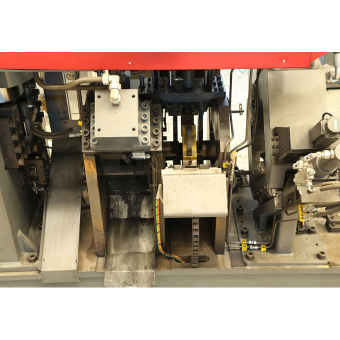

  • 2 x Triple C-Frame Punching Unit
  • 2 punch stations with 90 tons hydraulic cylinder each holds 3 quick punches
  • Max.hydraulic operating pressure is 250 bar
  • Max.diameter: ø32
  • Max.thickness: 20mm
  • Marking Systems: 1) Marking Cartridge 8 cassettes / 8 character

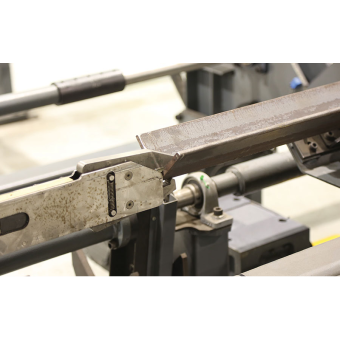

  • Angle Shear : 280 tons hydraulic cylinder
  • Shearing Capacity: Angle Steel min:40x40x5 mm max.160x160x17 mm

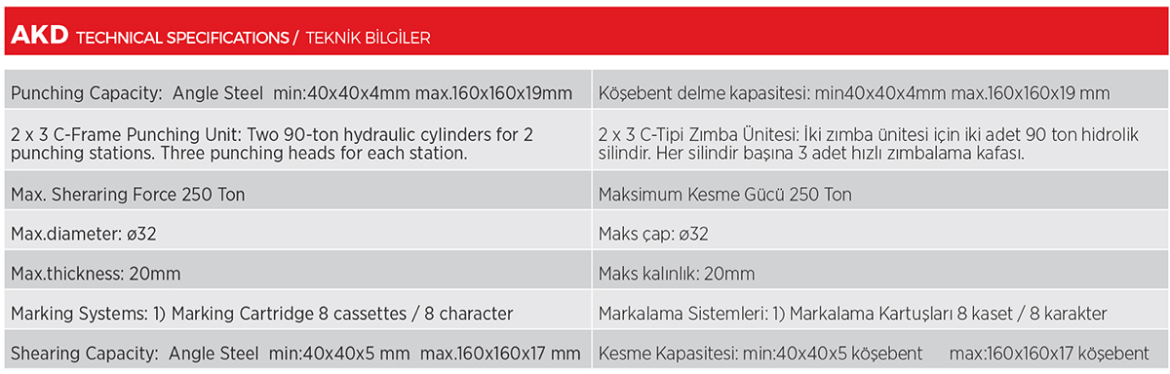

Specifications
