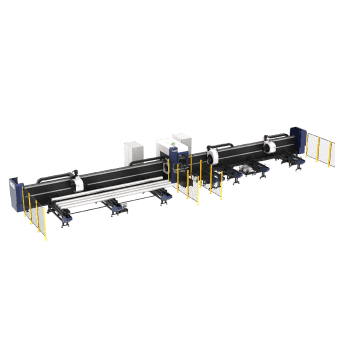

TL300 Series

TL300 Series

Zero tailing Heavy duty laser cutting machine (1500-4000W)

  • Real O Tailing by Intelligent four digital chucks
  • Max. weight of single tube 300kg
  • HSG-X9800 Intelligent Control System
  • Semi automatic synchronous loading & unloading system

Features

tl300

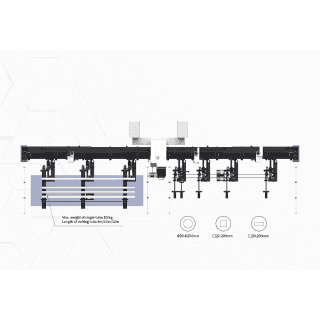

Wide Cutting Range of Tubes

TL300 is able to cut round tubes (Φ20-Φ254mm), square tubes (Φ20-Φ200mm), rectangular tubes (Φ20-Φ200mm) and profiles like angle, channel and H-shaped steel. The max. weight of single tube and tube bundles can reach up to 300kg and 2100kg respectively. If manual loading is adopted, the max. cutting length varies from 8650mm to 12650mm.

gb series

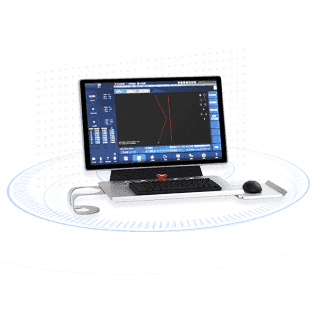

HSG-X9800 Intelligent Control System

As the fifth generation, HSG-X9800 is specially developed for our intelligent four digital chucks based on the X9000 intelligent system and emerges as the domestic first system aimed at four chucks, as thus, cutting off real 0 tailing has been realized.

tl300

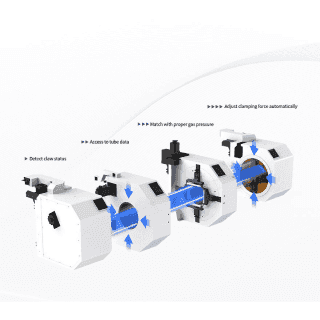

Heavy-duty Intelligent Four Digital Chucks

TL300 has double hydraulic+double pneumatic chucks. With a big clamping force, its oil cylinder can help to clamp heavy tubes easily and stably. It is unnecessary to change claws of the full-stroke chucks while clamping 20-254mm tubes.

tl300

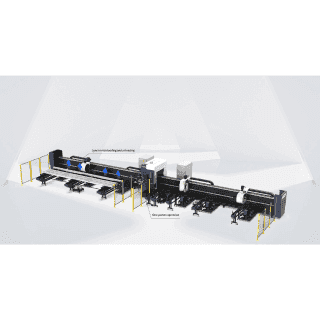

Semi-automatic Synchronous Loading and Unloading System

With the semi-automatic system, TL300 only needs to be operated by one worker while loading all kinds of tubes, including heavy tubes. Tubes will be loaded while unloading, without any unnecessary shutdown. Besides, tubes loaded will not collide with each other by using automatic manner, preventing any deformation.

tl300

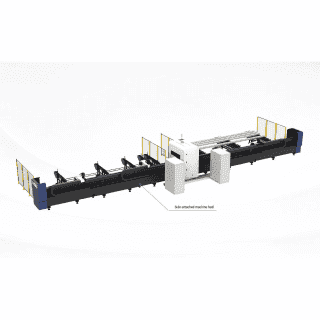

Side-attached Machine Bed

TL300 has a solid and durable side-attached machine bed, as same as other TL series machines. This structure is convenient for loading and unloading. During the above process of heavy tubes, the machine bed and guide rails will not be destroyed by collision. It can be said that it is further reinforced and becomes more stable and durable.

tl300

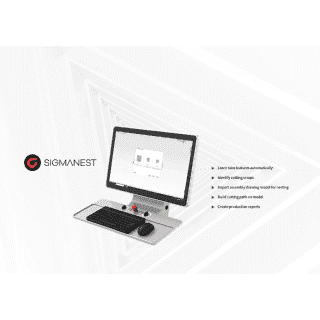

Imported SigmaTube Nesting Software

Its programming and advanced automatic nesting are suitable for conventional tubes, profiles and other sectional profiles.

Technical Parameters

Feature/Model TL300
Laser Power 1500-4000W
Chuck Rotating Speed 80r/min
Positioning Accuracy ±0.03mm/m
Repositioning Accuracy ±0.03mm
Max. Moving Speed 80m/min
Max. Acceleration Speed 0.8G
Max. Weight of Single Tube 300kg
Max. Weight of Tube Bundles 300kg
Max. Length of Cutting Tube 8000mm, 10000mm, 12000mm
Round Tube Processing Dim Φ20-Φ254mm
Square Tube Processing Dim 20-200mm
Rectangle Tube Processing Dim 20-200mm
Overall Dimensions (L*W*H) incl. Loading Racks 21000/24000/28000*6550*2700mm/td>

Cutting Sample
