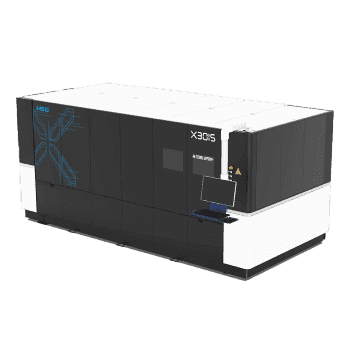

X Series

X Series

Ultra-high precision laser cutting machine (1500-3000W)

  • Small processing format from 600mm* 600mm to 3048mm* 1525mm
  • Marble or plate-welded machine bed
  • The 4th generation of extruded aluminium beam
  • Optional Visual Positioning System

Features

x-series

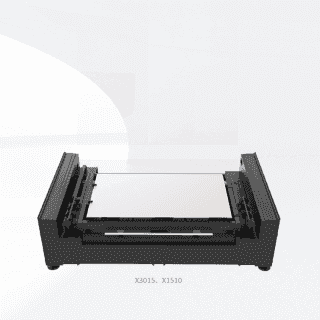

Marble or Plate-welded Machine Bed

Good rigidity, high hardness, heat resistant, no deformation after long-work; Easy to maintain and serve for a long time, cutting precision guaranteed.

x-series

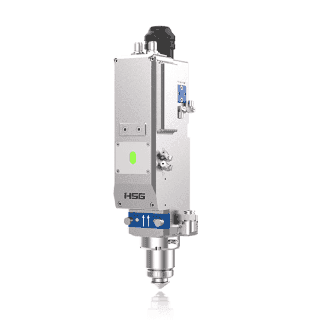

Optional Visual Positioning System

Visual camera installed on a laser cutting head helps to know a more accurate size of sheet while cutting; Built-in operating software is equipped with visual modules to show the whole cutting process in clear and real-time way; Especially suitable for laser cutting machines with small processing format because it can improve cutting precision by a large margin.

x-series

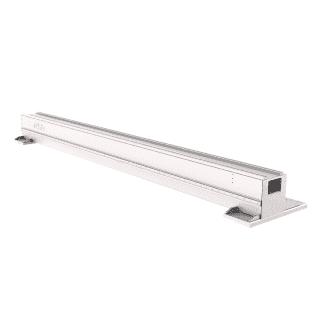

The 4th Generation of Extruded Aluminum Beam

Anti-burning manganese steel adopted, no worry about high power, and no deformation after long work; Manganese steel covers the whole cutting area and can withstand high heat, burning and hitting; Steel plate in the middle of the machine bed is effectively protected, in support of prolonging its service life.

x-series

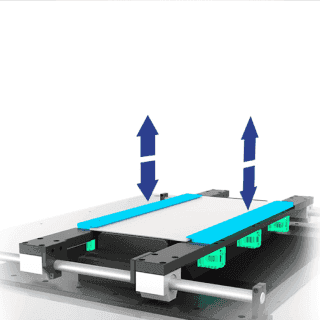

Anti-shake Clip, Back-end Loading

Designed as single push-pull workbench, humanized and easy to load and receive tailing and wastes; Back-end loading available, apply to thin and ultra-long sheet cutting; Hurricane-force zoning ventilation system, high suction, excellent dust removal and environmental-friendly.

x-series

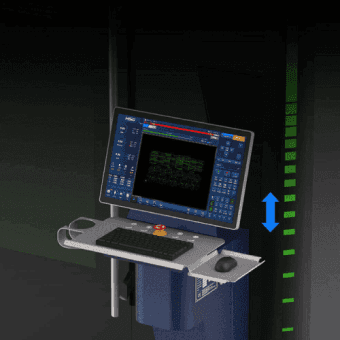

Alpha T Bus CNC System

Alpha T, self-developed by HSG LASER, can make data transmission rapid, stable and accurate only via a network cable as a technically advanced bus system.

  • New man-machine Interaction pattern
  • Active obstacleavoidance
  • Flexible/batch processing mode
  • Real-lime monitoringolcore components
  • Special cutting technology for thick sheets
  • Active reminder of machine maintenance
  • Ultra-high-speed scanning & curling with micro-connection
  • Built-in nesting software, save labor force
x-series

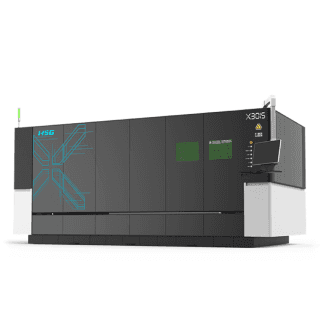

Full-protective Structure with Zoning Ventilation

With full-protective structure and OD6+ laser-proof lass, operators will be well protected from laser radiation. Due to zoning ventilation system, cutting smoke dust can be discharged instantly and you will enjoy much cleaner working environment.

X Series in Action

Technical Parameters

Feature/Model X0606 X1510 X3015
Working Area (L*W) 600 * 600mm 1500 * 1000mm 3000 * 1500mm
X/Y Axis Positioning Accuracy ±0.02mm/m ±0.03mm/m ±0.03mm/m
X/Y Axis Repositioning Accuracy ±0.005mm ±0.03mm ±0.03mm
Max. Moving Speed 60m/min 100m/min 120m/min
Max. Acc. Speed 1.0G 1.2G 1.5G
Laser Power 1500W~3000W 1500W~3000W 1500W~3000W

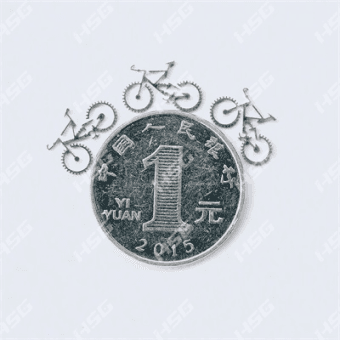

Cutting Sample

Technical Parameters

  • Feature/Model
  • Working Area (L*W)
  • X/Y Axis Positioning Accuracy
  • X/Y Axis Repositioning Accuracy
  • Maximum Speed
  • Maximum Acceleration
  • Laser Power
  • X0606
  • 600 * 600mm
  • ±0.02mm/m
  • ±0.005mm
  • 60m/min
  • 1.0G
  • 1500W~3000W
  • X1510
  • 1500 * 1000mm
  • ±0.03mm/m
  • ±0.03mm
  • 100m/min
  • 1.2G
  • 1500W~3000W
  • X3015
  • 3000 * 1500mm
  • ±0.03mm/m
  • ±0.03mm
  • 120m/min
  • 1.5G
  • 1500W~3000W

Cutting Sample
