GX Pro Series

GX Pro Series

High-power double exchange platforms laser cutting machine (6-12kW)

  • Alpha T Bus CNC System
  • P06/ P10 high-power auto focus cutting head
  • Full-protective structure
  • Eco-friendly cutting
  • Double exchange platforms
  • Taper Pins positioning

Features

gx pro series

Alpha T Bus CNC System

Alpha T, self-developed by HSG LASER, can make data transmission rapid, stable and accurate only via a network cable as a technically advanced bus system.

  • Special cutting technology for thick sheets
  • Ultra-high-speed scanning & cutting with micro-connection
  • Active obstacle avoidance
  • Real-time monitoring of core components
  • Build-in nesting software

gx pro series

P06 / P10

High-power Intelligent Bus Cutting Head It can change its laser spot to proper size and shape according to cutting materials and thickness. Thin sheets are cut at high speed and thick sheets are cut with high quality.

  • Unique laser path reshaping, low demands for material quality
  • Optimize gas flow structure for more stable cutting
  • Monitor optical lens temperature intelligently
  • Double drawer-type protective lens, easy to maintain

gx pro series

Eco-friendly Cutting

Full-protective Design

The machine is full-protective and a pneumatic safety door is installed between exchange platforms to prevent smoke dispersion.

Zoning Ventilation

With zoning ventilation, butterfly valve and 300*300mm full-hollow air ducts (outboard), the much better ventilation and almost smoke-free effects will come true.

Positive-pressure Blowing

Blower fans on its top cover and beam offer positive-pressure blowing to press cutting smoke below the machine bed.

gx pro series

Double Exchange Platforms, Taper Pins Positioning

Fast in Exchange

16A wide chains are adopted for fast and stable exchange.

Safe in Operation

With high-precision CNC, the whole exchange will be shown on the PLC touch screen.

Stable in Cutting

Exchange platforms are positioned by taper pins and their accuracy is relatively high.

gh pro ii series feature

The Latest Generation of Extruded Aviation Aluminum Beam

The light-weight 6 series aviation aluminium alloy is used due to its good dynamic performance. Our beam is designed as a honeycomb anti-compression structure and made by using an extrusion moulding process, hence, high strength but no air or sand hole.

gx pro series

Carbon steel welded machine bed

Due to 500Mpa tensile strength and welding stress elimination by low annealing and vibration aging, the machine bed will keep high precision and stability for over 20 years. Covered with military-level anti-burning manganese steel plate, it can also help to prevent thermal deformation.

GX Pro Series in Action

Technical Parameters

Feature/Model G3015X Pro G4020X Pro G6025X Pro
Power 6000W-12000W 6000W-12000W 6000W-12000W
Processing Format (L*W) 3048*1524mm 4064*2032mm 6050*2525mm
X/Y Axis Positioning Accuracy ±0.03mm/m ±0.05mm/m ±0.05mm/m
X/Y Axis Repositioning Accuracy ±0.03mm ±0.05mm ±0.05mm
Max. Acc. Speed 1.5G 1.2G 1.2G
Max. No-load Speed 140m/min 140m/min 120m/min
Max. Loading Weight 1100kg 2500kg 3500kg
Overall Dimensions (L*W*H) 8900*2260*2200mm 10965*3884*2626mm 15500*4500*2626mm

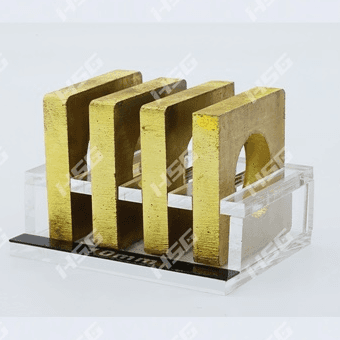

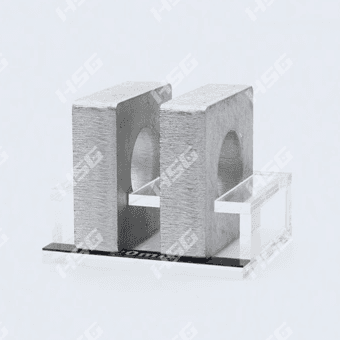

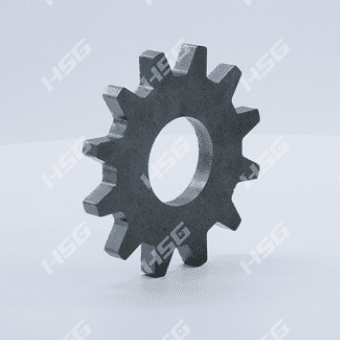

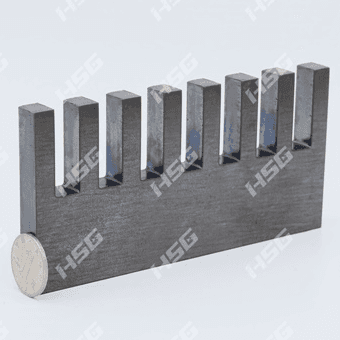

Cutting Sample

Technical Parameters

  • Technical Parameter
  • Power
  • Processing Format (L*W)
  • X/Y-axis Positioning Accuracy
  • X/Y-axis Repositioning Accuracy
  • Max. Acceleration
  • Max. No-load Speed
  • Max. Loading Weight
  • Overall Dimensions (L*W*H)
  • G3015X Pro
  • 6000W-12000W
  • 3048*1524mm
  • ±0.03mm/m
  • ±0.03mm
  • 1.5G
  • 140m/min
  • 1100kg
  • 8900*2260*2200mm
  • G4020X Pro
  • 6000W-12000W
  • 4064*2032mm
  • ±0.05mm/m
  • ±0.05mm
  • 1.2G
  • 140m/min
  • 2500kg
  • 10965*3884*2626mm
  • G6025X Pro
  • 6000W-12000W
  • 6050*2525mm
  • ±0.03mm/m
  • ±0.05mm
  • 1.2G
  • 120m/min
  • 3500kg
  • 15500*4500*2525mm

Cutting Sample
