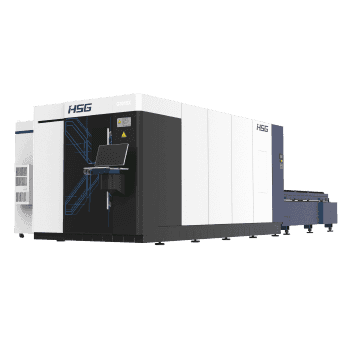

GX-M Series

GX-M Series

Double exchange platforms laser cutting machines (2000-6000W)

  • High performing Linear motor
  • German WITTENSTEIN Alpha Speed Reducer and Racks
  • Double exchange platforms, Taper Pins Positioning

Features

gx m series

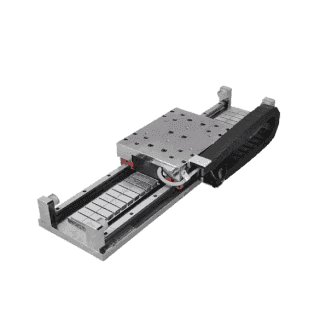

High-performing Linear Motor

  • High dynamic, high rigidity
  • Max. no-load speed 200m/min
  • Max. acceleration 2.0G
  • Roughly 20% faster than servo motor
gx m series

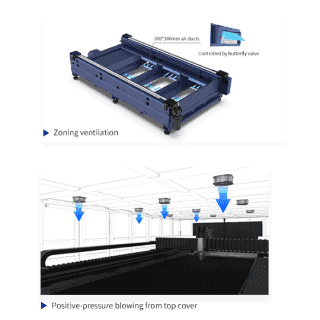

Zoning Ventilation

  • Divide cutting area into left and right zone
  • Generally controlled by butterfly valves
  • 300*300mm large-calibre ventilating ducts
  • Send positive-pressure gas to cutting area from top cover to press down cutting smoke below machine bed
gx m series

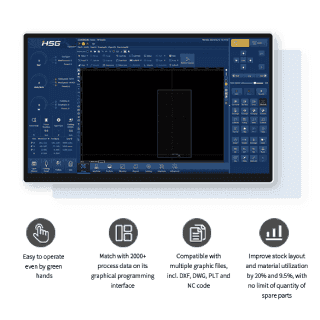

Alpha T Bus CNC System

Alpha T, self-developed by HSG LASER, can make data transmission rapid, stable and accurate only via a network cable as a technically advanced bus system.

  • Special cutting technology for thick sheets
  • Ultra-high-speed scanning & cutting with micro-connection
  • Active obstacle avoidance
  • Real-time monitoring of core components
  • Build-in nesting software

gx m series

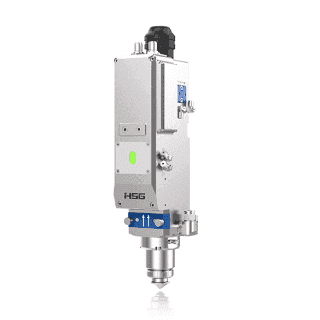

High-precision Autofocus Laser Cutting Head

Based on Japanese technology, the cutting head can adjust its focus according to laser beam mode to make sure of a mirror-like surface. It is easy to cut thin and thick sheets stably, and repair or maintain at low costs.

  • Autofocus accuracy ±0.01mm by servo autofocus system
  • Automatic cooling and obstacle avoidance
  • Laser transmittance 99.95%, loss 0.05%
  • Three built-in protective lens
  • Anti-pollution design
  • Give early warning if abnormal

Technical Parameters

Technical Parameter G3015X-M
Power 2000W-6000W
Processing Format (L*W) 3048*1524mm
X/Y Axis Positioning Accuracy ±0.03mm/m
X/Y Axis Repositioning Accuracy ±0.03mm
Max. Acc. Speed 2.0G
Max. No-load Speed 200m/min
Max. Loading Weight 950kg
Overall Dimensions (L*W*H) 8900*2260*2200mm

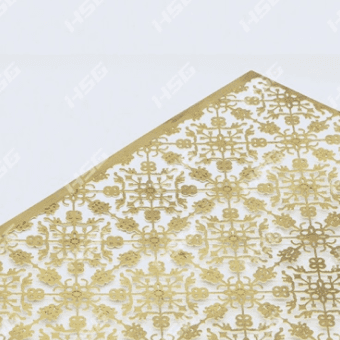

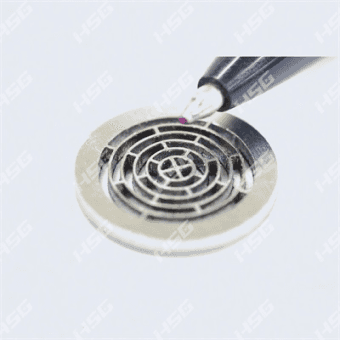

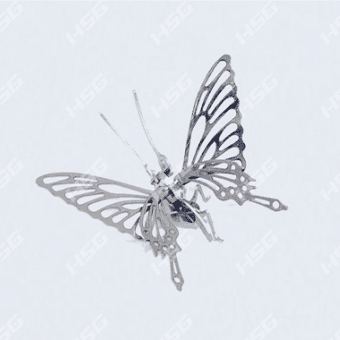

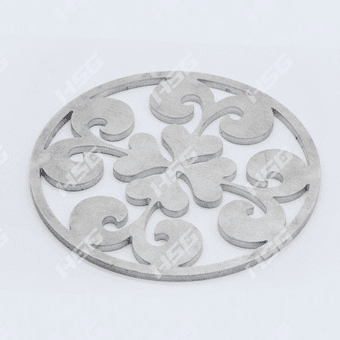

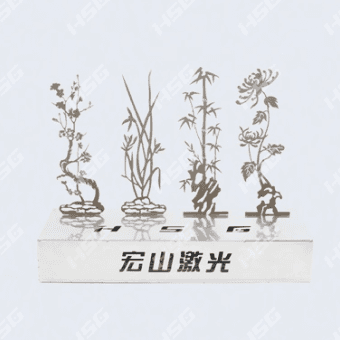

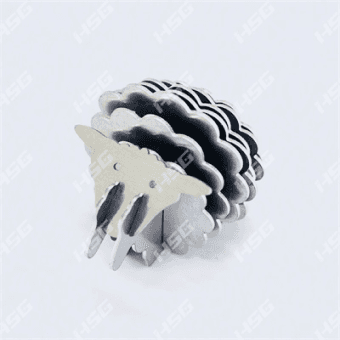

Cutting Sample

Technical Parameters

  • Technical Parameter
  • Power
  • Processing Format (L*W)
  • X/Y-axis Positioning Accuracy
  • X/Y-axis Repositioning Accuracy
  • Max. Acceleration
  • Max. No-load Speed
  • Max. Loading Weight
  • Overall Dimensions (L*W*H)
  • G3015X-M
  • 2000W-6000W
  • 3048*1524mm
  • ±0.03mm/m
  • ±0.03mm
  • 2.0G
  • 200m/min
  • 950kg
  • 8900*2260*2200mm

Cutting Sample
