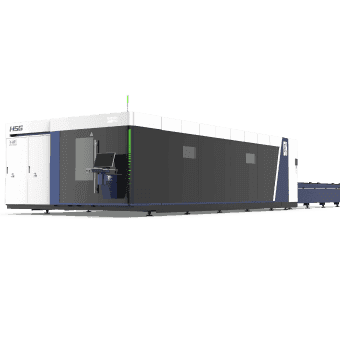

GH Pro II Series

GH Pro II Series

Ultra-high power bus laser cutting machine (15-20kW)

  • Alpha T Bus CNC System
  • P20 High-power Intelligent Cutting Head
  • Eco-friendly Cutting
  • Dual-monitor driven exchange platforms

Features

gh pro ii series feature

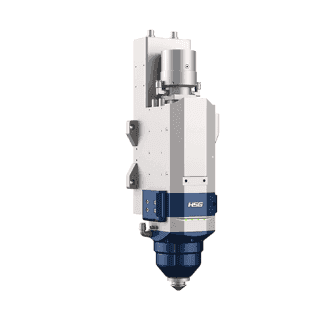

P20 High-power Intelligent Bus Cutting Head

P20 adopts two-way water-cooling+air-cooling technology to cut much thicker sheet metals stably at faster speed.

  • Unique laser spot reshaping technology lowers the requirements of material quality
  • Optical temperature control system balances heat and cold and stabilizes the cutting focus
  • Rationalize gas circuit rectifier to save more gas
  • Bus height-adjusting system enables favorable width of cutting focus
  • Detect lens pollution, carry out in-position check and remote monitoring of protective lens
gh pro ii series feature

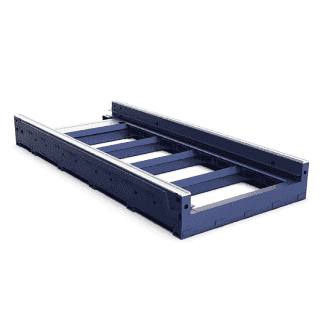

Patented Cornerstone Machine Bed

  • Firm, steady and high-precision without vibration while cutting at high speed
  • Rapid heat dissipation for much longer service life
  • Covered with military-level manganese anti-burning plate to prevent heat deformation
gh pro ii series feature

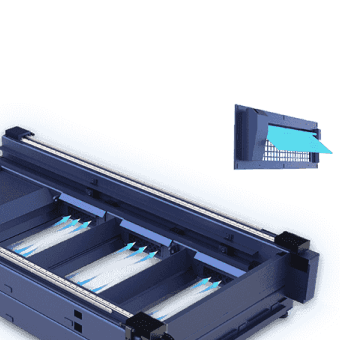

Zoning Ventilation System

The zoning ventilation, butterfly valve dampers and 300*300mm air ducts can result in fast smoke discharge.

Optional Features:

  • Top cover+ positive-pressure blower fans: create full-protective structure to discharge cutting smoke efficiently
  • Laser-proof glass: protect workers’ retina well
gh pro ii series feature

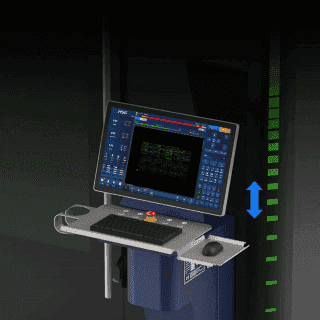

Alpha T Bus CNC System

Alpha T, self-developed by HSG LASER, can make data transmission rapid, stable and accurate only via a network cable as a technically advanced bus system.

  • New man-machine Interaction pattern
  • Active obstacleavoidance
  • Flexible/batch processing mode
  • Real-lime monitoringolcore components
  • Special cutting technology for thick sheets
  • Active reminder of machine maintenance
  • Ultra-high-speed scanning & curling with micro-connection
  • Built-in nesting software, save labor force
gh pro ii series feature

Dual-motor Driven Exchange Platforms

The platforms are driven by dual motors that work independently and will be interlocked to offer safe operation, in addition, it is easy to remove slags; With taper pins, the platforms are positioned accurately without any error and will work stably at high speed because of hexagonal tracks.

Optional Features:

  • Pneumatic door between exchange platforms:prevent cutting smoke diffusion and keep working environment clean
  • Safety light curtain: halt the machine instantly while detecting any intruder to protect machine and workers

GH-PRO II Series in Action

Technical Parameters

Feature/Model G4020H Pro G6025H Pro G8025H Pro
Working Area (L*W) 4000mm*2000mm 6000mm*2500mm 8000mm*2500mm
Stroke (X/ Y/ Z Axis) 2025mm/4065mm/270mm 2550mm/6100mm/270mm 2550mm/8100mm/320mm
X/Y Axis Positioning Accuracy 0.03mm/m 0.03mm/m 0.03mm/m
X/Y Axis Repositioning Accuracy ±0.02mm ±0.03mm ±0.03mm
Max. Moving Speed 169m/min 120m/min 120m/min
Max. Acc. Speed 1.5G 1.5G 1.5G
Laser Power 12000W~30000KW 12000W~30000KW 12000W~30000KW
Overall Dimensions (L*W*H) 12000×3500×2400mm 15900×4150×2370mm 20100×4150×2370mm

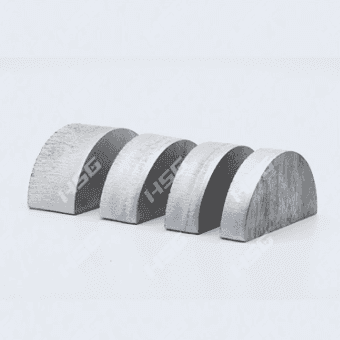

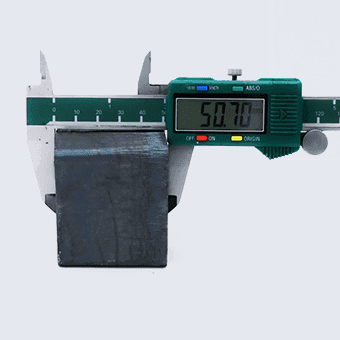

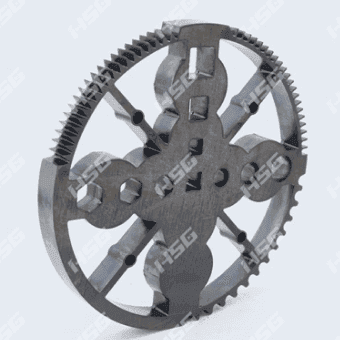

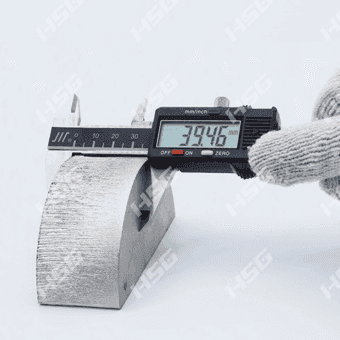

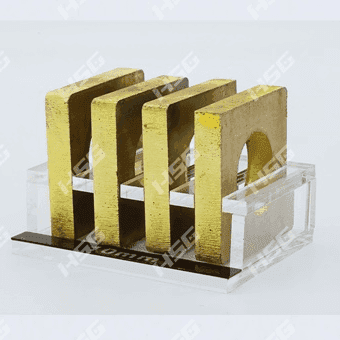

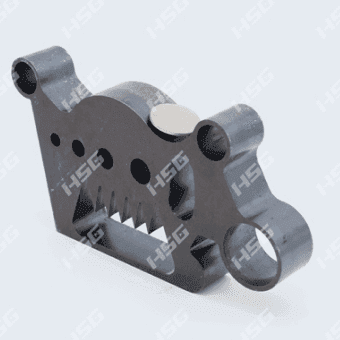

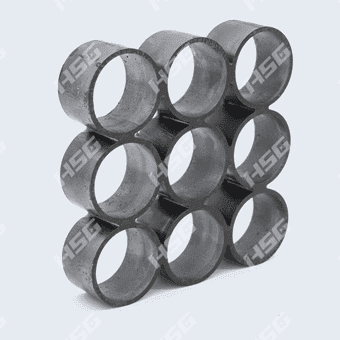

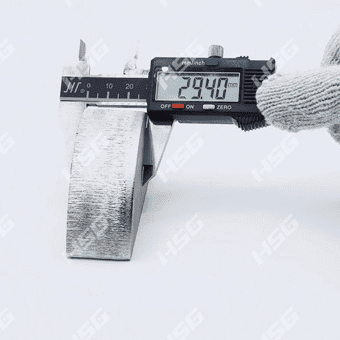

Cutting Sample
