GF-A Series

GF-A Series

High-power large format laser cutting machine (6-30kW)

  • Easy to operate even on green hands
  • Compatible with multiple graphic files including DXF, DWG, PLT and NC code
  • Special cutting technology for thick sheets
  • Real-time monitoring of core components

Features

gf-a-series

Cut Large-format Thick Sheets

Thickness of long-term batch stable cutting: 20mm+, extreme thickness: 100mm Max. processing format 24000*5000mm, allow customization of format lengthCut both sheet metals and large-sized profile steel.

gt-pro-ll

Alpha T Bus CNC System

Alpha T, self-developed by HSG LASER, can make data transmission rapid, stable and accurate only via a network cable as a technically advanced bus system.

  • New man-machine Interaction pattern
  • Active obstacleavoidance
  • Flexible/batch processing mode
  • Real-lime monitoringolcore components
  • Special cutting technology for thick sheets
  • Active reminder of machine maintenance
  • Ultra-high-speed scanning & curling with micro-connection
  • New man-machine Interaction pattern
gf-a-series

Full-hollow Carbon Steel Welded Machine Bed

GF-A adopts a full-hollow machine bed, which performs better in cutting speed and high precision. Moreover, it will work for the long term even under high temperatures. Our machine bed is made of several sections, therein, each section is 5-7m or prolonged as required by users. Machine bed is easy to disassemble and install. Users will put it into production quickly.

gf-a-series

P30/P20/P10/P06 Laser Cutting Head (6-30kW)

The four kinds of self-developed laser cutting heads, covering medium-to-high power, high-power and ultra-high power, can cut thicker metal sheets stably under high temperature, high pressure and high speed.

  • Autofocus, active obstacle avoidance, automatic cooling down
  • Cut medium-to-thin, thick, ultra-thick sheets stablyeven during batch cutting
  • Flexible/batch processing mode
  • Easy to offer mirror-like surface cutting
  • Cut sheets at higher efficiency and save more gas
  • Lower requirements for sheets loaded
  • Give early warning if abnormal
  • Simple to maintain at lower costs

GF-A Series in Action

Technical Parameters

Feature/Model G12032FA G13025FA
Working Area (L*W) 12000mm*3200mm 13000mm*2500mm
Stroke (X/ Y/ Z Axis) 3200mm/12000mm/200mm 2500mm/13000mm/200mm
X/Y Axis Repositioning Accuracy ±0.05mm/m ±0.05mm/m
X/Y Axis Repositioning Accuracy ±0.05mm ±0.05mm
Max Moving Speed 80m/min 80m/min
Max. Acc. Speed 0.5G 0.5G
Laser Power 6KW~30KW 6KW~30KW
Max. Loading Weight 18000kg 13000kg
Overall Dimensions (L*W*H) 15000mm*5300mm*1900mm 17000mm*4730mm*2200mm

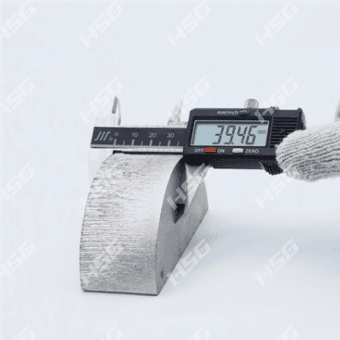

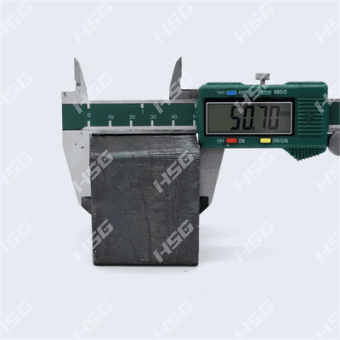

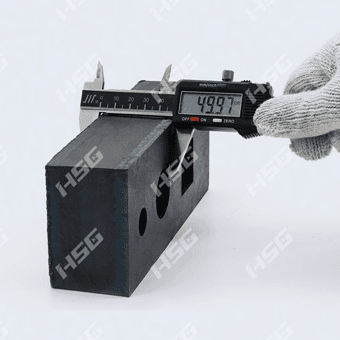

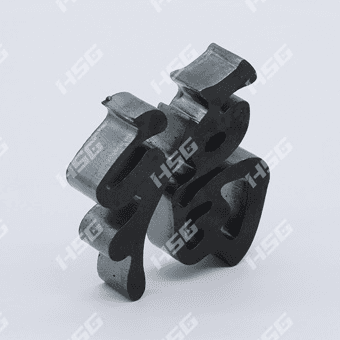

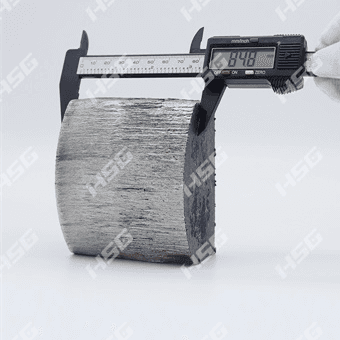

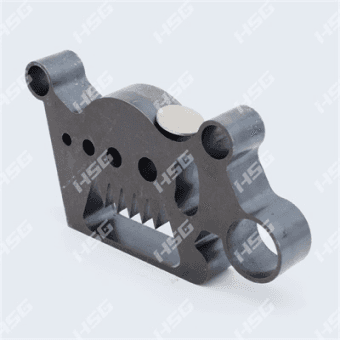

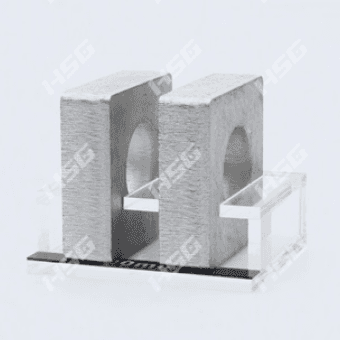

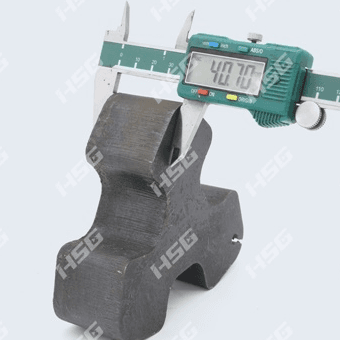

Cutting Sample

Technical Parameters

  • Feature/Model
  • Working Area (L*W)
  • Stroke (X/ Y/ Z Axis)
  • X/Y Axis Positioning Accuracy
  • X/Y Axis Repositioning Accuracy
  • Max. Moving Speed
  • Max. Acc. Speed
  • Laser Power
  • Max. Loading Weight
  • Overall Dimensions (L*W*H)
  • G12032FA
  • 12000mm*3200mm
  • 3200mm/12000mm/200mm
  • ±0.05mm/m
  • ±0.05mm
  • 80m/min
  • 0.5G
  • 6KW~30KW
  • 18000kg
  • 15000mm*5300mm*1900mm
  • G6025T Pro
  • 6000mm*2500mm
  • 2550mm/6050mm/320mm
  • ±0.03mm/m
  • ±0.03mm
  • 120m/min
  • 1.5G
  • 8KW~12KW
  • 3500kg
  • 15900×4150×2370mm

Cutting Sample
