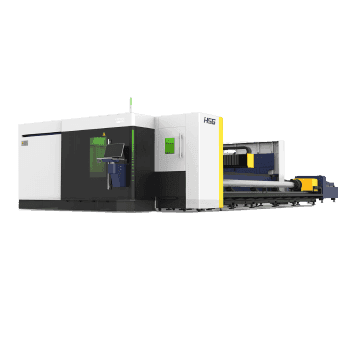

GTE Pro Series

GTE Pro Series

High-power, large calibre Sheet & Tube Laser Cutting machine (8000-12000W)

  • Innovative positive pressure protection
  • Area division ventilation system
  • Honeycomb compressive structure design
  • Easy to operate even on green hands

Features

gte pro series

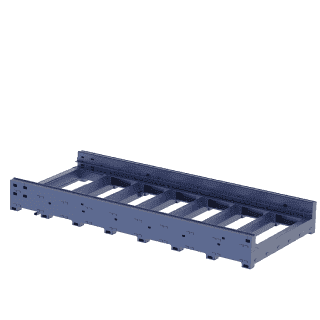

Carbon Structural Steel Welding Machine Bed

Featuring heat-resisting and burning protection, the overall structure is protected by high manganese steel and has the characteristics of high rigidity, little heat absorption, rapid heat dissipation and deformation protection. It can remain stable after long-term working at high speed. It is very accurate.

gte pro series

Innovative Positive Pressure Protection

According to the demand of medium and high power cutting, the original beam is created to continuously send positive air pressure to the cutting areas, so as to easily suppress the cutting dust and prevent the dust from going up.

gh pro ii series feature

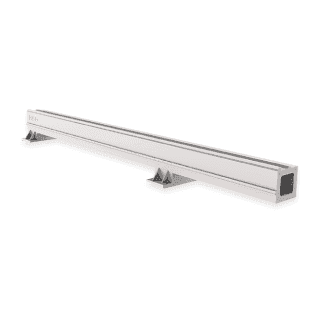

The 4th Generation Aviation Aluminum Beam

  • The light-weight 6 series aviation aluminum alloy adopted offers good dynamic performance.
  • The beam is designed as honeycomb compressive structure in accordance with aerospacecraft design standards.
  • The beam takes its shape by extrusion molding technology, without air or sand hole, but high strength.
gb series

Alpha A CNC System

  • New man-machine Interaction pattern
  • Active obstacle avoidance
  • Flexible/batch processing mode
  • Real-lime monitoring of core components
  • Special cutting technology for thick sheets
  • Active reminder of machine maintenance
  • Ultra-high-speed scanning & curling with micro-connection
  • Built-in nesting software, save labor force
GTE PRO SERIES

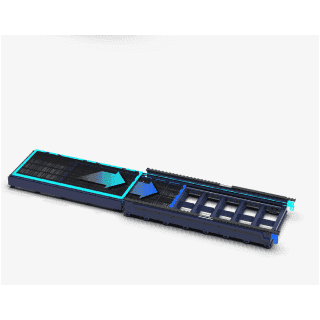

High-precision Exchange Platform

Driven by dual motors which work independently, without any effect on each accuracy; Easy to remove slags; Double taper pin positioning, easy and accurate.

Technical Parameters

Feature/Model G3015TE-35HQ Pro G4020TE-35HQ Pro G6025TE-35HQ Pro G8025TE-35HQ Pro
Working Area (L*W) 3050mm*1525mm 4000*2000mm 6000*2500mm 8000*2500mm
Stroke (X/ Y/ Z Axis) 1575mm/3075mm/320mm 2050mm/4050mm/320mm 2550mm/6050mm/320mm 2550mm/8050mm/320mm
X/Y Axis Positioning Accuracy ±0.03mm/m ±0.03mm/m ±0.03mm/m ±0.03mm/m
X/Y Axis Repositioning Accuracy ±0.03mm ±0.03mm ±0.03mm ±0.03mm
Max. Moving Speed 100m/min 100m/min 100m/min 100m/min
Max. Acc. Speed 1.2G 1.2G 1.2G 1.2G
Round Tube Processing Dim. Φ20-Φ325mm Φ20-Φ325mm Φ20-Φ325mm Φ20-Φ325mm
Square Tube Processing Dim. 20*20mm-230*230mm 20*20mm-230*230mm 20*20mm-230*230mm 20*20mm-230*230mm
Rectangle Tube Processing Dim. Diagonal≤325 Diagonal≤325 Diagonal≤325 Diagonal≤325
Laser Power 8KW~12KW 8KW~12KW 8KW~12KW 8KW~12KW
Max. Loading of Sheet 1100kg 2000kg 3500kg 4680kg
Max. Loading of Tube 200kg 200kg 200kg 200kg
Overall Dimensions (L*W*H) 10300*4380*2750mm 11480*4880*2750mm 15960*5400*2750mm 20100*5400*2750mm

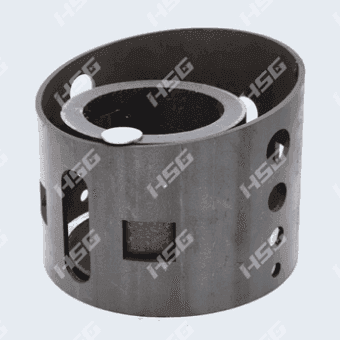

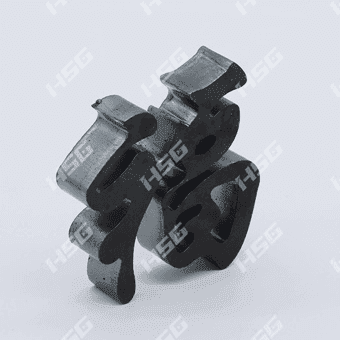

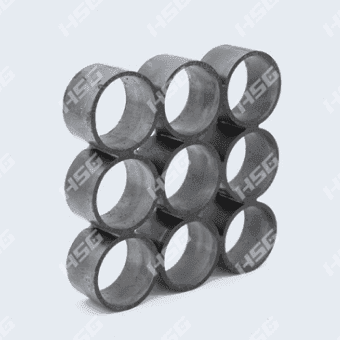

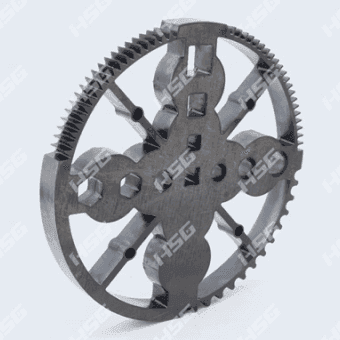

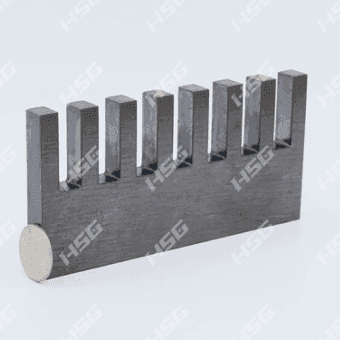

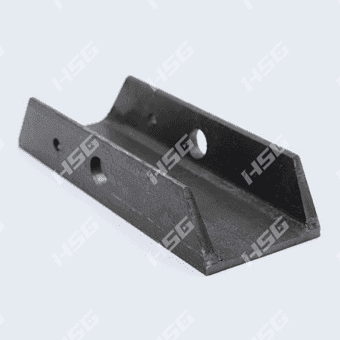

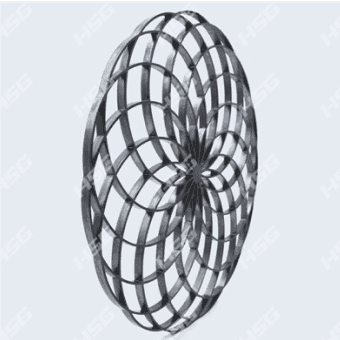

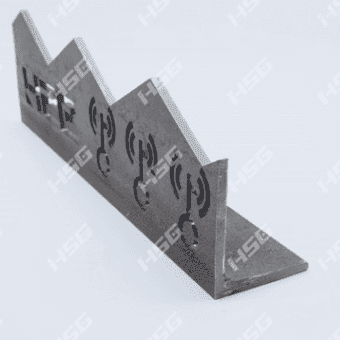

Cutting Sample

GTE Pro Series Cutting Sample GTE Pro Series Cutting Sample GTE Pro Series Cutting Sample GTE Pro Series Cutting Sample GTE Pro Series Cutting Sample GTE Pro Series Cutting Sample GTE Pro Series Cutting Sample GTE Pro Series Cutting Sample
