Automatic Pallet Racks for Sheet and Tube Metals

  • Allow customization
  • One-to-many work
  • Unmanned and full-automatic operation

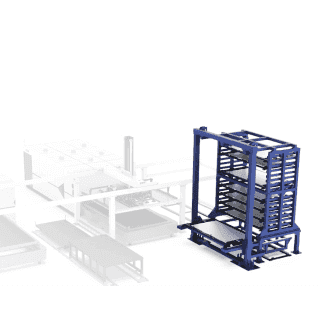

Scientific and Tightly-packed Storage

Sheet metals are stored in a batch and systematic way for the convenience of easy invocation and quick production. This tower-type stereoscopic pallet rack will maximize cubicle space and accommodate more sheet metals compactly. The disordered storage manner will become a thing of the past, a prelude to efficient production.


Unmanned but Well-arranged Production

The production starts by itself according to relevant plans. Its precision control system has a function of intelligent management that will invoke sheet metals for loading and permit unmanned cutting. Except for saving labour costs, misoperation caused by manual work will also be effectively avoided.

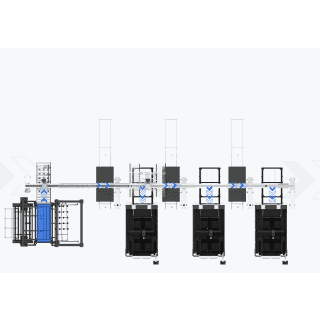

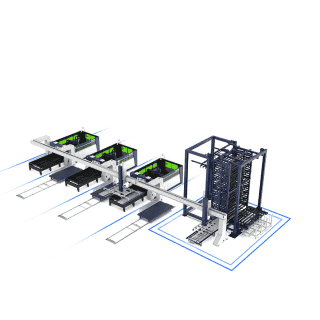

One-to-many Operation by Modular Extension

A set of automatic loading & unloading systems can simultaneously serve for several cutting machines to make efficient production possible. Except for reduction in energy consumption, the utilization of workshops will also be enhanced.


Full-automatic and Intelligentized

24h non-stop production is made possible by full-automatic and unmanned work even at night. Its intelligent arrangement of tasks allows self-acting planning according to production plans. With an intelligent reloading function, all types of tubes will be changed at will.

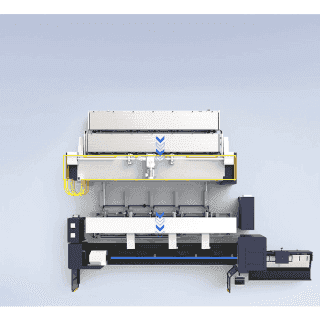

Ultra-high Production Efficiency

Raw materials and well-prepared sheets can be automatically changed in syn with processing. As thus, reloading duration is minimized to improve the whole production efficiency.

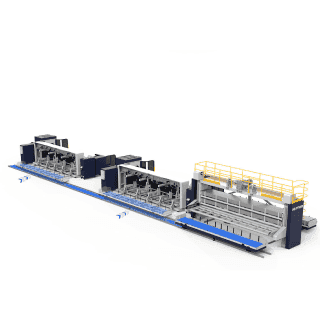

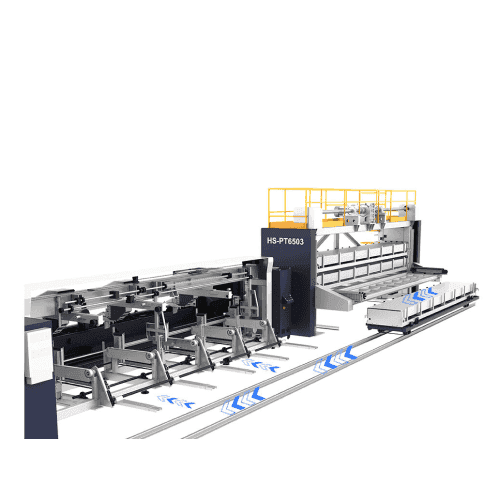

Modular Extension and Multi-machine Interconnection

A pallet rack can serve for several tube laser cutting machines, expanding production capacity and saving space costs. Many kinds of tubes will be accurately loaded to the appointed tube laser cutting machines. Its flexible processing is a good carrier of digital-based production concepts conveyed by Industry 4.0.

ARW & PT65 Series in Action

Technical Parameters

Model PT65 Model ARW3015-X ARW4020-X
Standard Number of Pallets 3 Number of Pallets 8/10/16(customizable) 8/10/16(customizable)
Max. Length of Tube 6500mm Max. Size of Sheet Metal 3000*1500mm 4000*2000mm
Min. Size of Sheet Metal 1250*1250mm 1250*1250mm
Max. Loading Weight of Single Pallet 3t Thickness of Single Sheet 0.8-6mm 0.8-6mm
Max. Net Loading Weight of Single Pallet 3t 3t
Max. Height between Pallets 500mm Max. Height between Pallets 120mm 120mm
Applicable Models TX PLUS Applicable Models GX, GA/GA Pro, GH Pro, GT Pro
