iMark UV Laser Marking Machine

Contact-less and process-safe laser marking machine

  • Permanent marking
  • Flexible, dynamic data can be marked
  • Cost-efficient production
  • High-speed marking, Laser marking in seconds for more throughput
  • Perfect marking results - fine tool
  • Flexible and convenient operation system, Integration into production lines
  • Good stability and maintenance-free
  • Excellent beam quality, high stability output

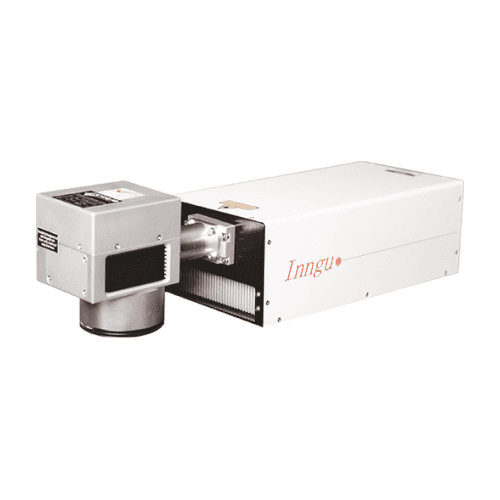

UV Laser Source

Machine is standard with Inngu, JPT, IPG UV laser source according to the customer's requirements, perfect laser beam, and long life.

  • Highly stable laser output
  • High single-pulse energy
  • High marking efficiency
  • Short pulse setup time
  • High-reliability
  • Maintenance-free operation

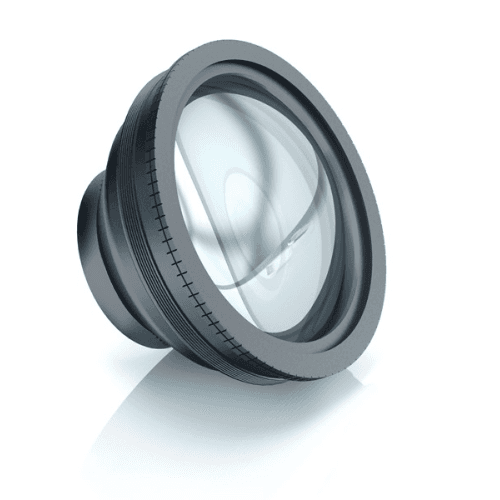

Field Lens

Featuring an air-spaced design and anti-reflective coating, our compact Fθ field lens ensures an excellent throughput and durability with less than 1% distortion.

  • The finest optical materials in the world
  • Special housing designs to optimize performance
  • Designs featuring 1 to 5 optical elements
  • Wavelength 355nm (UV)
  • Telecentric scan lens offers smaller spot size.
  • Low loss AR coatings
  • Precision optical elements

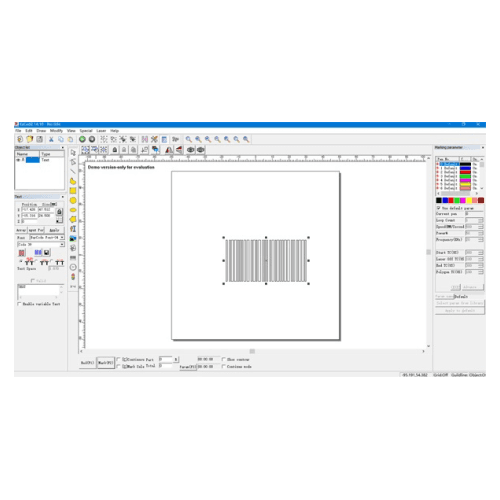

Control System with Software

Our engraver comes with a Beijing JCZ board card and EzCad2 software compatible with Windows 7, 8, and 10. It is professional engraving offering stable performance with high reliability. It’s intuitive and easy to use. It can also use images from AutoCAD, CorelDraw, Adobe Illustrator, Photoshop, etc.


Galvanometric System

The laser’s high-speed Galvo-Tech digital galvanometric system reduces delays and improves your engraving speed.

  • Cost-effective high-speed galvo scanner
  • High-Speed Scanning, Precise Positioning and Stable Performance
  • Zero Drift, Small Size and Strong Anti-Interference

iMark UV Laser Marking Machine in Action

Technical Parameters

Model iMark UV3 iMark UV5 iMark UV7
Laser 3W 5W 7W
Wavelength 355nm
Mi. Character 0.15 mm
Repeat precision ±0.001 mm
Beam quality (M2) <1.2
Modulating frequency 20-200 KHZ
Marking scope 100×100/150×150/200×200 mm (Optional)
Marking speed (mm/s) ≤10000
Cooling way Water cooling / Air Cooling
Power system 220V±5% /20Hz /5A
Power requirements <500 / <600
Specifications are liable to change without prior notice. Computer system will not be provided with the machine. Total machine power consumption is 1KW.

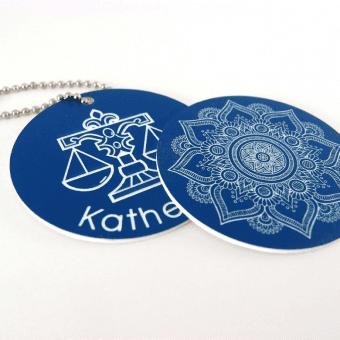

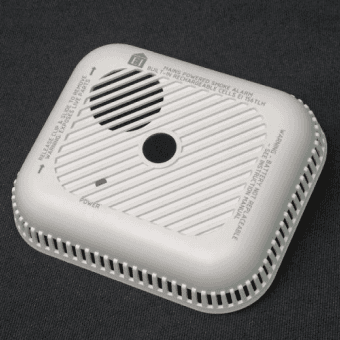

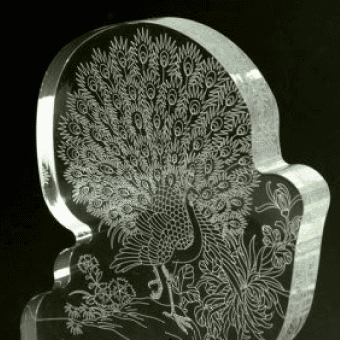

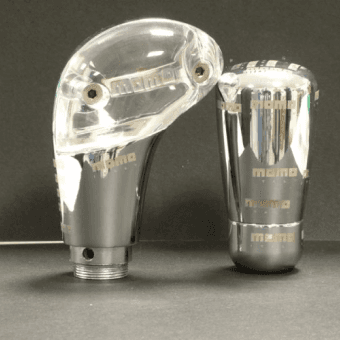

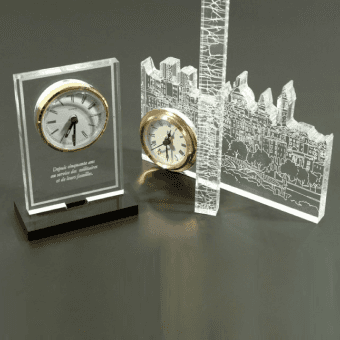

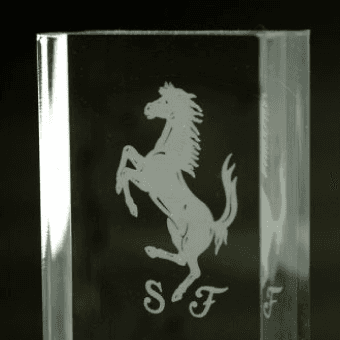

  • Marking on all non-metal
  • Useful for sharp and precise marking
  • Batch Coding
  • Bar code / Data Matrix Marking
  • Serial Number Marking
  • Bitmap (Graphics) marking
  • High quality gray scale marking


uv-laser options


co2-laser attachment co2-laser attachment co2-laser attachment co2-laser attachment

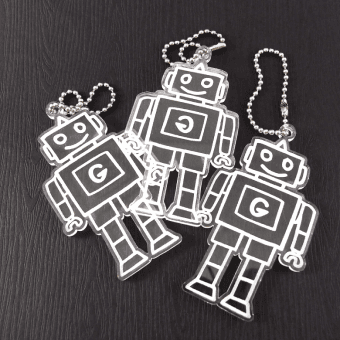

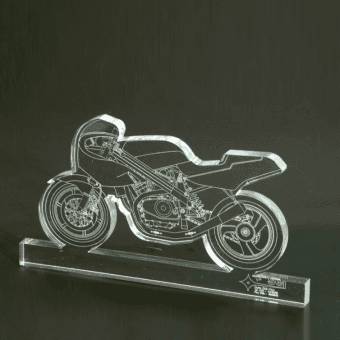

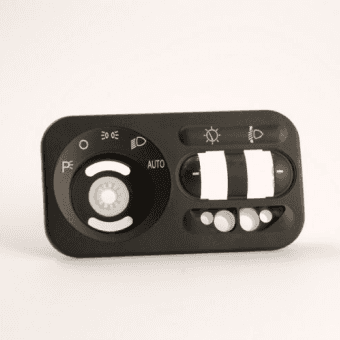

Cutting Sample
