iMark Co2 Laser Marking Machine

High-speed CO2 laser marking machine

  • Permanent marking
  • Flexible, dynamic data can be marked
  • Cost-efficient production
  • Perfect marking results - fine tool
  • Flexible and convenient operation system, Integration into production lines
  • Non-contact and process-safe
  • Good stability and maintenance-free
  • Excellent beam quality, high stability output

Features

Co2 Laser Source:

FeMachine is standard with Coherent, Synrad laser source according to customer's requirements, perfect laser beam and long life.

  • Highly stable laser output
  • High single-pulse energy
  • High marking efficiency
  • Short pulse setup time
  • High-reliability
  • Maintenance-free operation

Field Lens

Featuring an air-spaced design and anti-reflective coating, our compact Fθ field lens ensures an excellent throughput and durability with less than 1% distortion

  • The finest optical materials in the world
  • Special housing designs to optimize performance
  • Designs featuring 1 to 5 optical elements
  • Wavelength 10600nm (Co2)
  • Telecentric scan lens offers smaller spot size.
  • low loss AR coatings
  • precision optical elements

Control System with Software

Our engraver comes with a Beijing JCZ board card and EzCad2 software compatible with Windows 7, 8, and 10. It is professional engraving offering stable performance with high reliability. It’s intuitive and easy to use. It can also use images from AutoCAD, CorelDraw, Adobe Illustrator, Photoshop, etc.

co2-laser

Galvanometric System

The laser’s high-speed Galvo-Tech digital galvanometric system reduces delays and improves your engraving speed.

  • Cost-effective high-speed galvo scanner
  • High-Speed Scanning, Precise Positioning and Stable Performance
  • Zero Drift, Small Size and Strong Anti-Interference

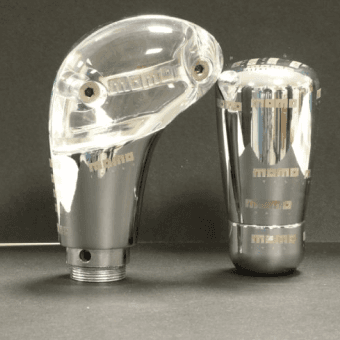

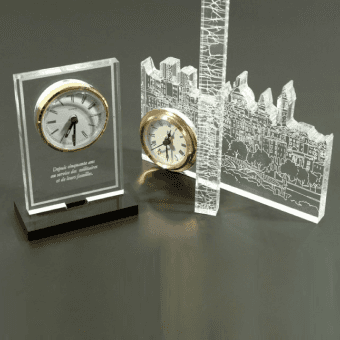

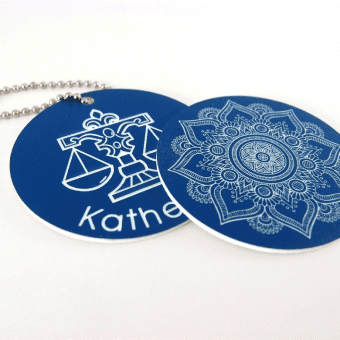

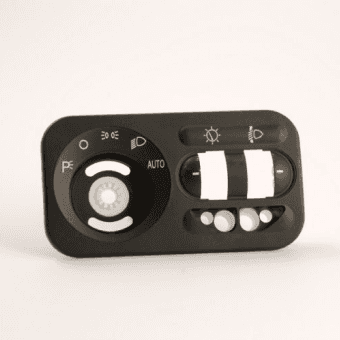

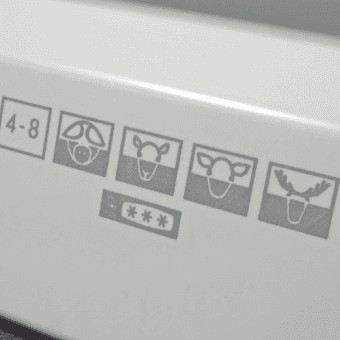

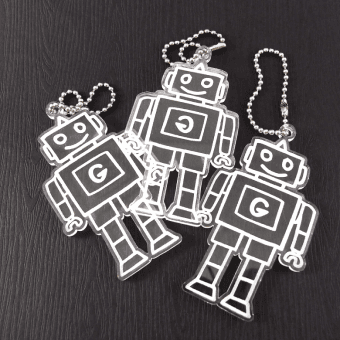

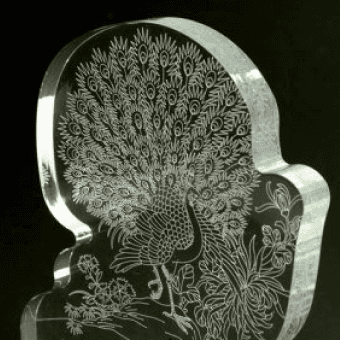

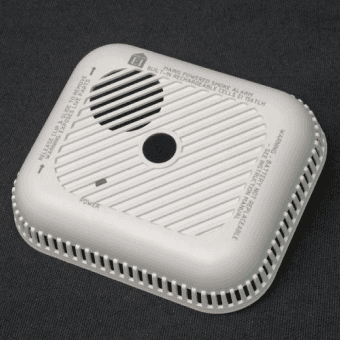

iMark Co2 Laser Marking Machine in Action

Technical Parameters

Model iMark- 30C iMark- 60C
Output Power 30 W 60 W
Wavelength 10.64 μm (Optional 10.2 μm / 9.3 μm)
Power Adjustment 0 to 100 %
Cooling Air Cooled / Water Cooled
Min. Line Width Min. 0.1 mm (Depend on Material)
Max. Speed Max. 10000 mm/s (Max. Linear Speed)
Marking Range(mm/s) 1100 mm X 100 mm (Standard) Optional: 200 x 200 mm
Supporting Format Support PLT, DXF, BMP File etc., Using SHX TTF Character Storage Directly
Repeatability <20 μrad
Output Power Stability <3%
Max Power Consumptions 1 KW
Specifications are liable to change without prior notice. Computer system will not be provided with the machine. Total machine power consumption is 1KW.

Applications

  • Marking on all non-metal
  • Useful for sharp and precise marking
  • Batch Coding
  • Bar code / Data Matrix Marking
  • Serial Number Marking
  • Bitmap (Graphics) marking
  • High quality gray scale marking

Options

co2-laser models co2-laser models

Attachments

co2-laser attachment co2-laser attachment co2-laser attachment co2-laser attachment
